5/5V630

Top Width: 3.245" (82.42mm)
Outside Length: 63.6" (1615.4mm)
Inside Length: 62" (1574.8mm)
Min Pulley Diameter: 7.1"
Configuration: 5-Band Set

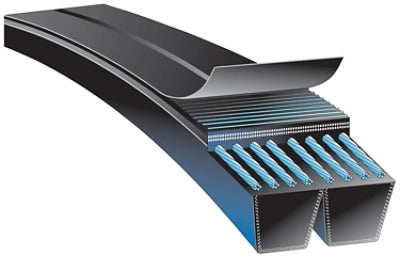

The 5/5V630 is a factory-joined 5-band 5V banded belt assembly measuring 3.245" wide x 63.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224625

$127.80

Only 4 Left!

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	5/5V630
Top Width	3.245 in / 82.42 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	62.0 in / 1574.8 mm
Outside Length	63.6 in / 1615.4 mm
Effective Length	63.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	5
