5/5V1900

Top Width: 3.245" (82.42mm)
Outside Length: 190.6" (4841.2mm)
Inside Length: 189" (4800.6mm)
Min Pulley Diameter: 7.1"
Configuration: 5-Band Set

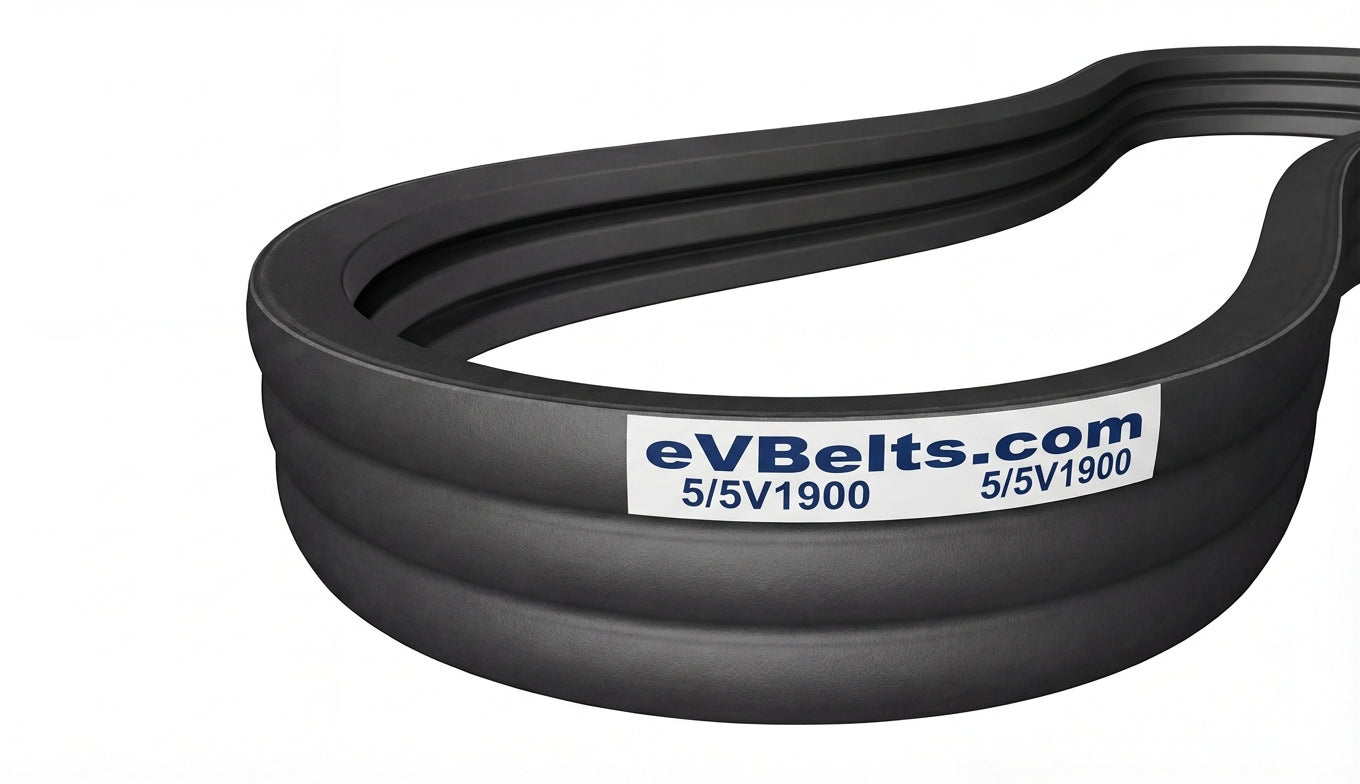

The 5/5V1900 is a factory-joined 5-band 5V banded belt assembly measuring 3.245" wide x 190.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224648

$265.98

18 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	5/5V1900
Top Width	3.245 in / 82.42 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	189.0 in / 4800.6 mm
Outside Length	190.6 in / 4841.2 mm
Effective Length	190.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	5
