4/5V850

Top Width: 2.59" (65.79mm)
Outside Length: 85.6" (2174.2mm)
Inside Length: 84" (2133.6mm)
Min Pulley Diameter: 7.1"
Configuration: 4-Band Set

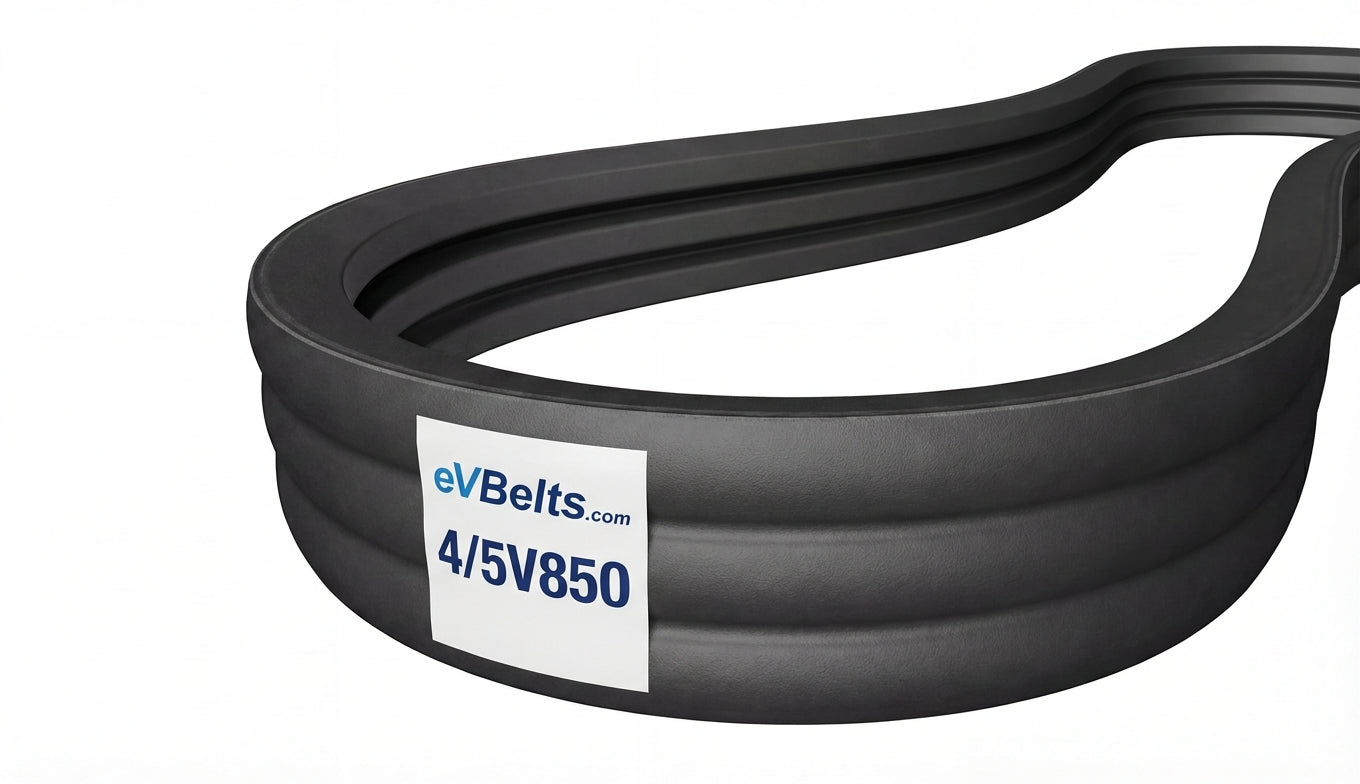

The 4/5V850 is a factory-joined 4-band 5V banded belt assembly measuring 2.59" wide x 85.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224593

$100.36

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	4/5V850
Top Width	2.59 in / 65.79 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	84.0 in / 2133.6 mm
Outside Length	85.6 in / 2174.2 mm
Effective Length	85.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	4
