3/5V500

Top Width: 1.935" (49.15mm)
Outside Length: 50.6" (1285.2mm)
Inside Length: 49" (1244.6mm)
Min Pulley Diameter: 7.1"
Configuration: 3-Band Set

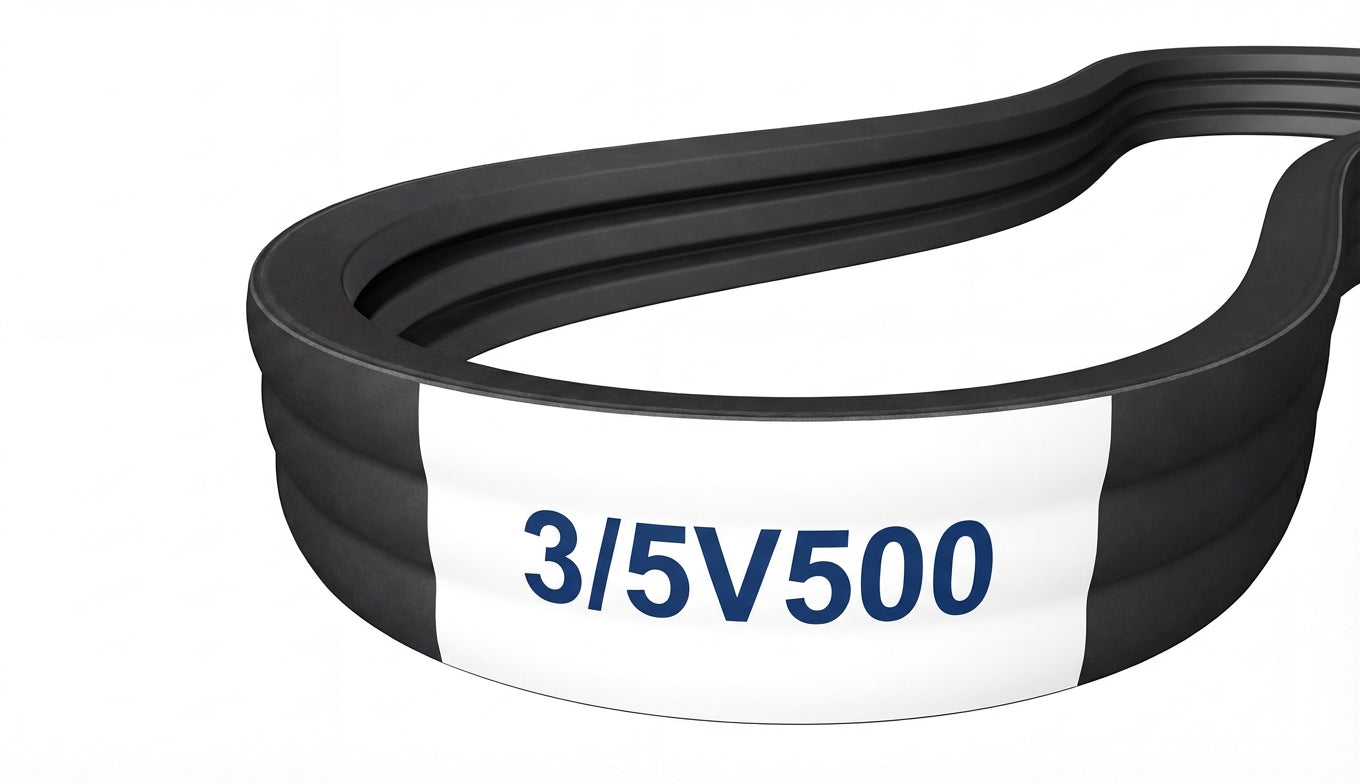

The 3/5V500 is a factory-joined 3-band 5V banded belt assembly measuring 1.935" wide x 50.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224548

$59.47

Only 1 Left!

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	3/5V500
Top Width	1.935 in / 49.15 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	49.0 in / 1244.6 mm
Outside Length	50.6 in / 1285.2 mm
Effective Length	50.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	3
