3/5V2800

Top Width: 1.935" (49.15mm)
Outside Length: 280.6" (7127.2mm)
Inside Length: 279" (7086.6mm)
Min Pulley Diameter: 7.1"
Configuration: 3-Band Set

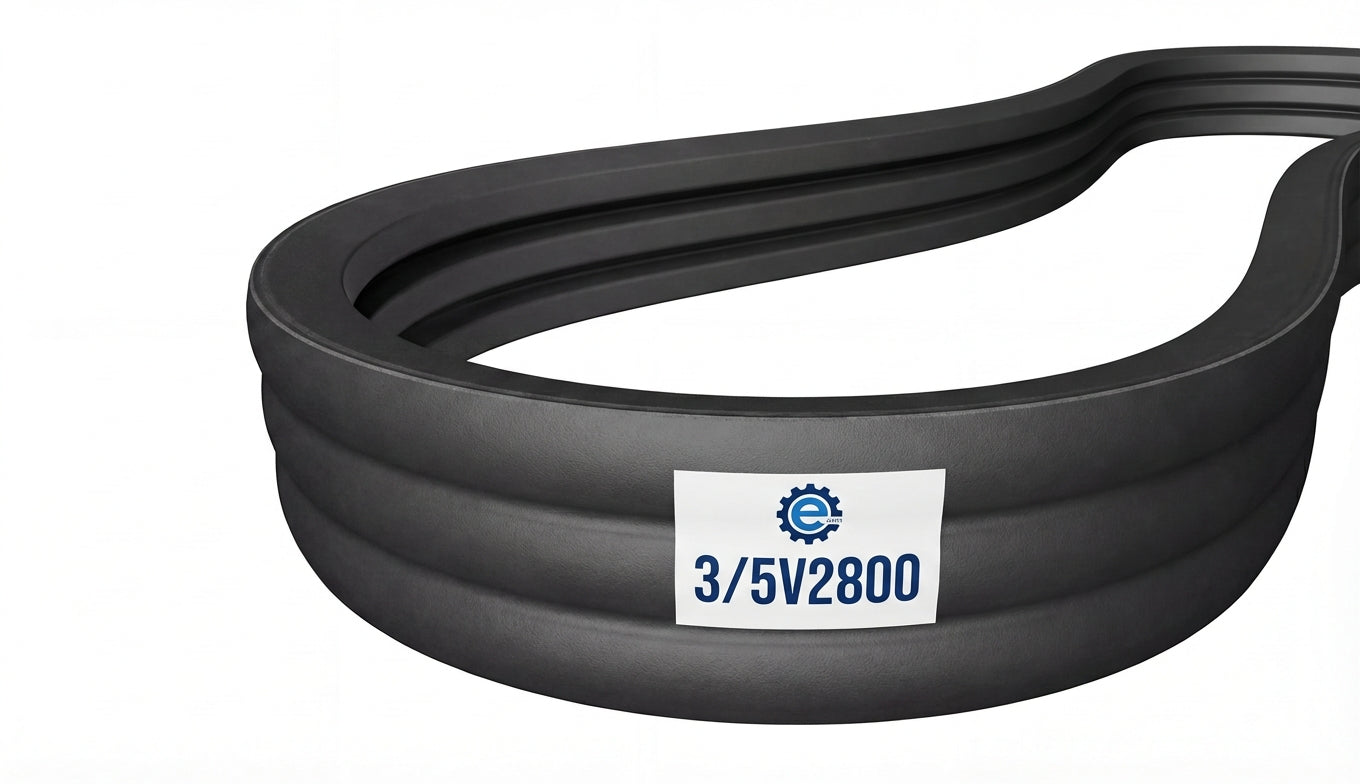

The 3/5V2800 is a factory-joined 3-band 5V banded belt assembly measuring 1.935" wide x 280.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224580

$240.84

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	3/5V2800
Top Width	1.935 in / 49.15 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	279.0 in / 7086.6 mm
Outside Length	280.6 in / 7127.2 mm
Effective Length	280.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	3
