2/5V1320

Top Width: 1.28" (32.51mm)
Outside Length: 132.6" (3368mm)
Inside Length: 131" (3327.4mm)
Min Pulley Diameter: 7.1"
Configuration: 2-Band Set

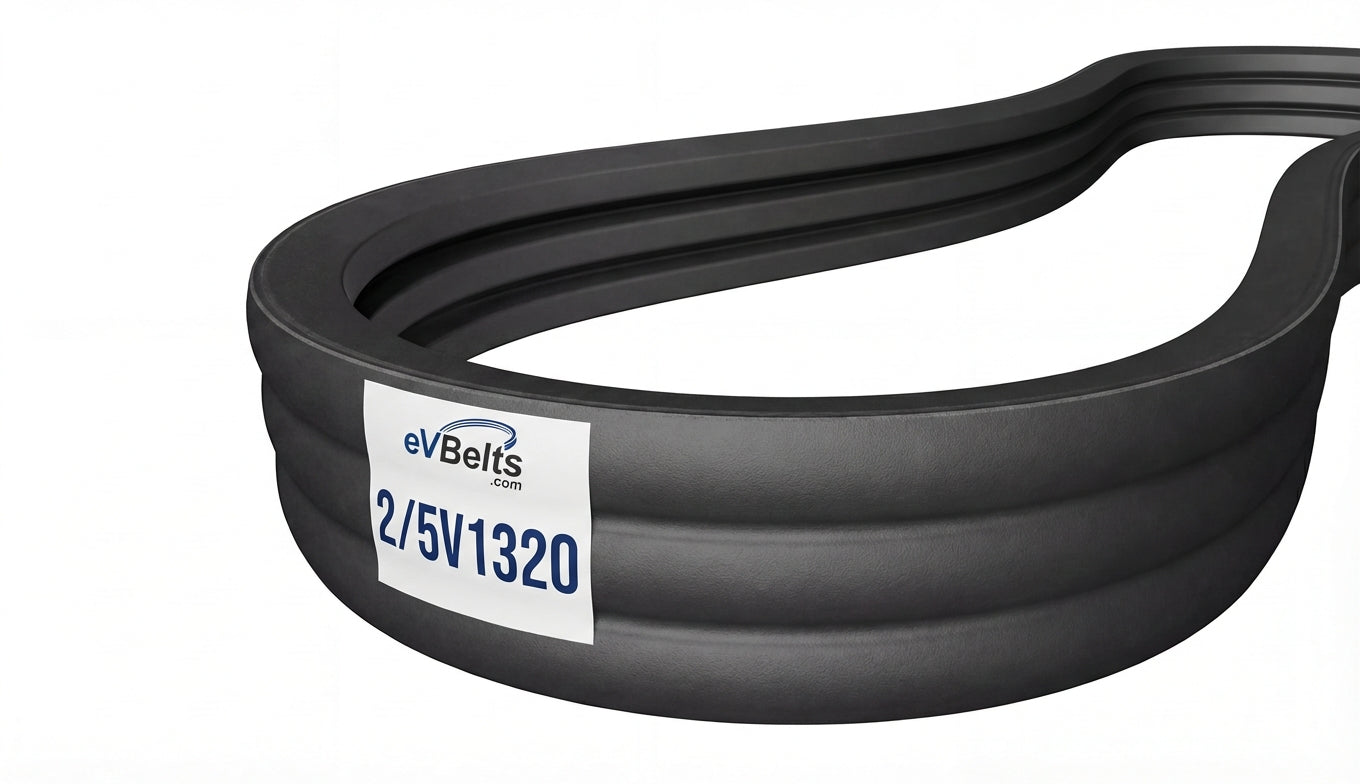

The 2/5V1320 is a factory-joined 2-band 5V banded belt assembly measuring 1.28" wide x 132.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224530

$91.36

24 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	2/5V1320
Top Width	1.28 in / 32.51 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	131.0 in / 3327.4 mm
Outside Length	132.6 in / 3368.0 mm
Effective Length	132.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	2
