17/5V630

Top Width: 11.105" (282.07mm)
Outside Length: 63.6" (1615.4mm)
Inside Length: 62" (1574.8mm)
Min Pulley Diameter: 7.1"
Configuration: 17-Band Set

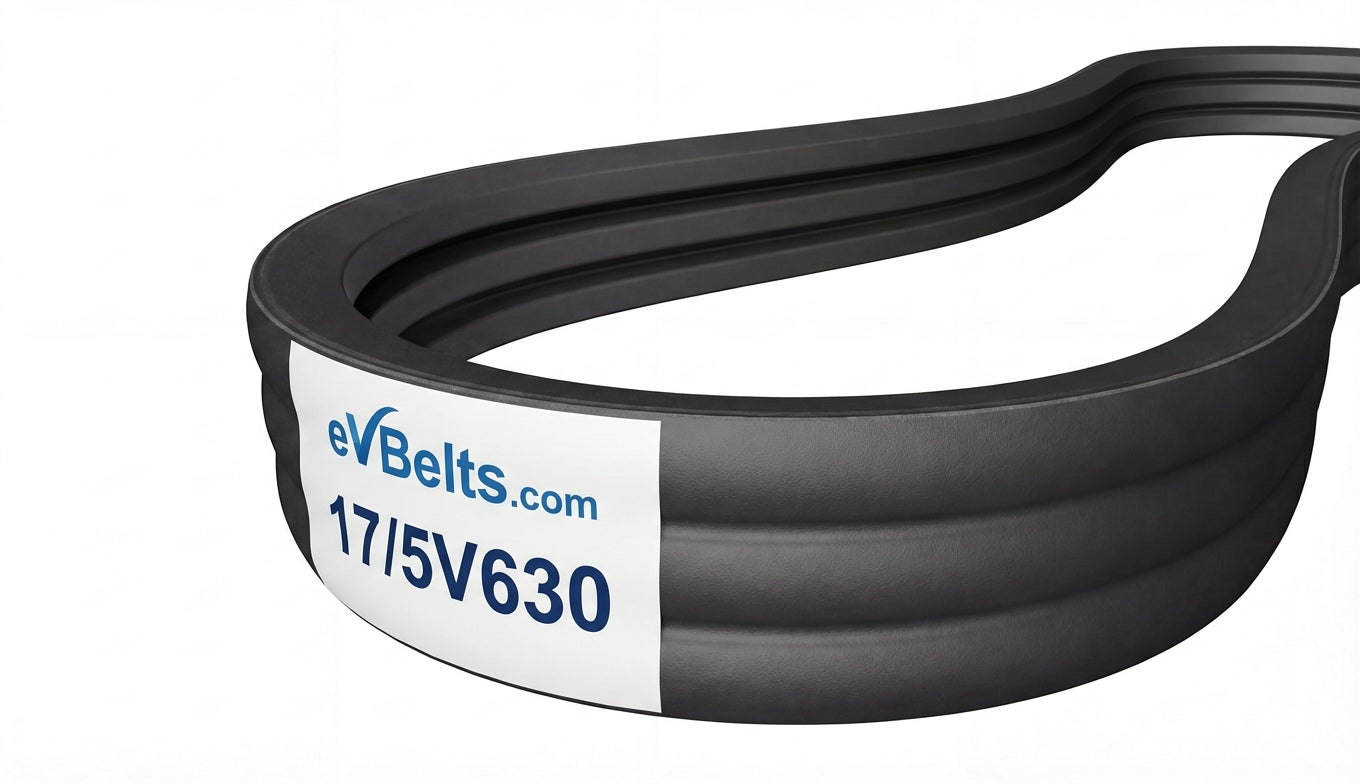

The 17/5V630 is a factory-joined 17-band 5V banded belt assembly measuring 11.105" wide x 63.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224441

$451.95

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	17/5V630
Top Width	11.105 in / 282.07 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	62.0 in / 1574.8 mm
Outside Length	63.6 in / 1615.4 mm
Effective Length	63.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	17
