17/5V1500

Top Width: 11.105" (282.07mm)
Outside Length: 150.6" (3825.2mm)
Inside Length: 149" (3784.6mm)
Min Pulley Diameter: 7.1"
Configuration: 17-Band Set

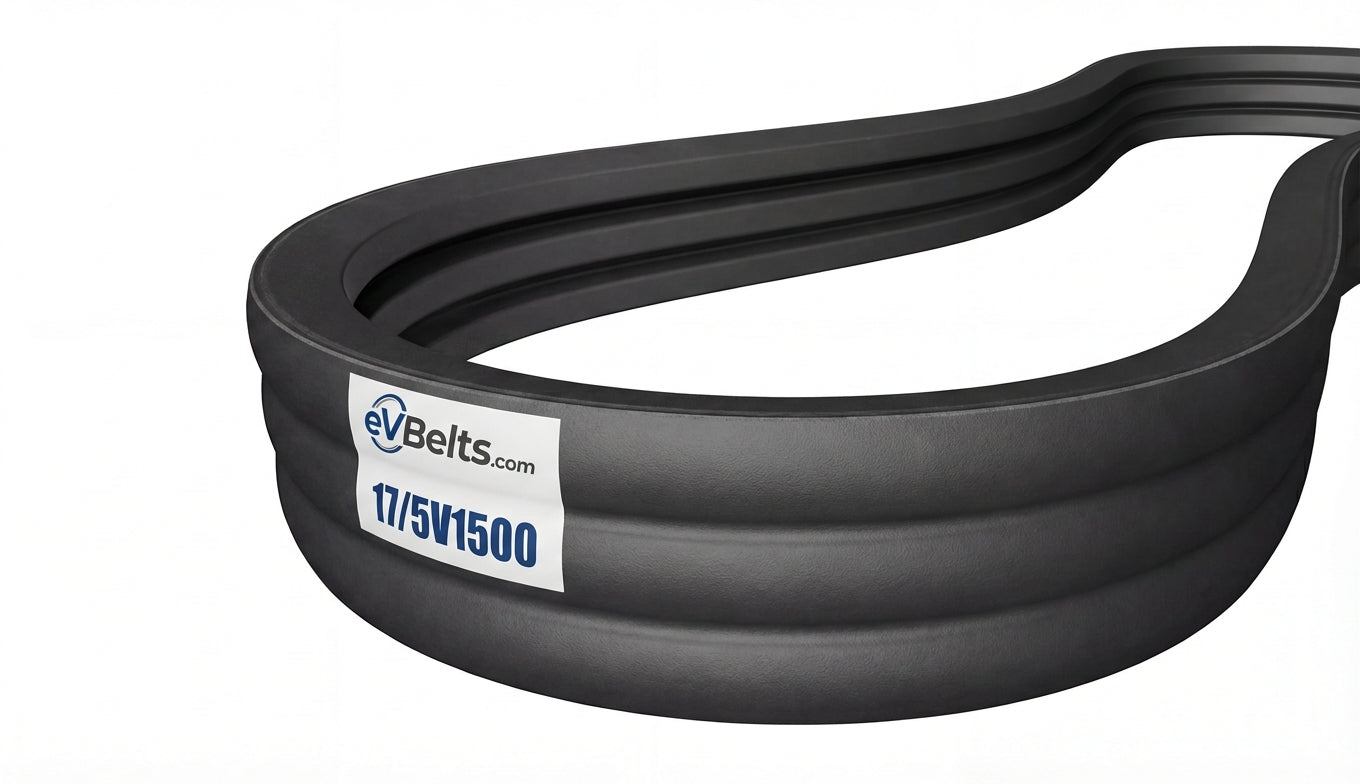

The 17/5V1500 is a factory-joined 17-band 5V banded belt assembly measuring 11.105" wide x 150.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224458

$1,099.85

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	17/5V1500
Top Width	11.105 in / 282.07 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	149.0 in / 3784.6 mm
Outside Length	150.6 in / 3825.2 mm
Effective Length	150.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	17
