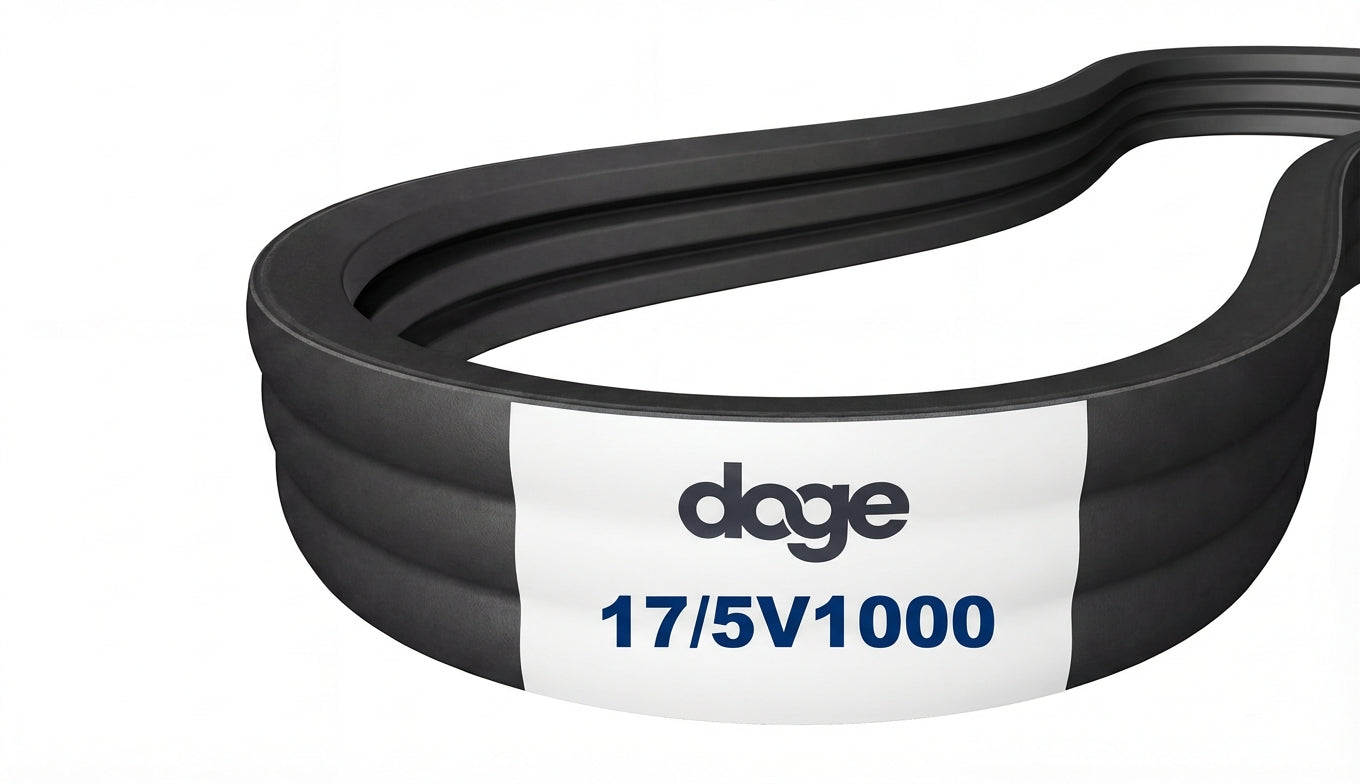

17/5V1000

Top Width: 11.105" (282.07mm)
Outside Length: 100.6" (2555.2mm)
Inside Length: 99" (2514.6mm)
Min Pulley Diameter: 7.1"
Configuration: 17-Band Set

The 17/5V1000 is a factory-joined 17-band 5V banded belt assembly measuring 11.105" wide x 100.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224450

$731.33

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	17/5V1000
Top Width	11.105 in / 282.07 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	99.0 in / 2514.6 mm
Outside Length	100.6 in / 2555.2 mm
Effective Length	100.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	17
