16/5V1700

Top Width: 10.45" (265.43mm)
Outside Length: 170.6" (4333.2mm)
Inside Length: 169" (4292.6mm)
Min Pulley Diameter: 7.1"
Configuration: 16-Band Set

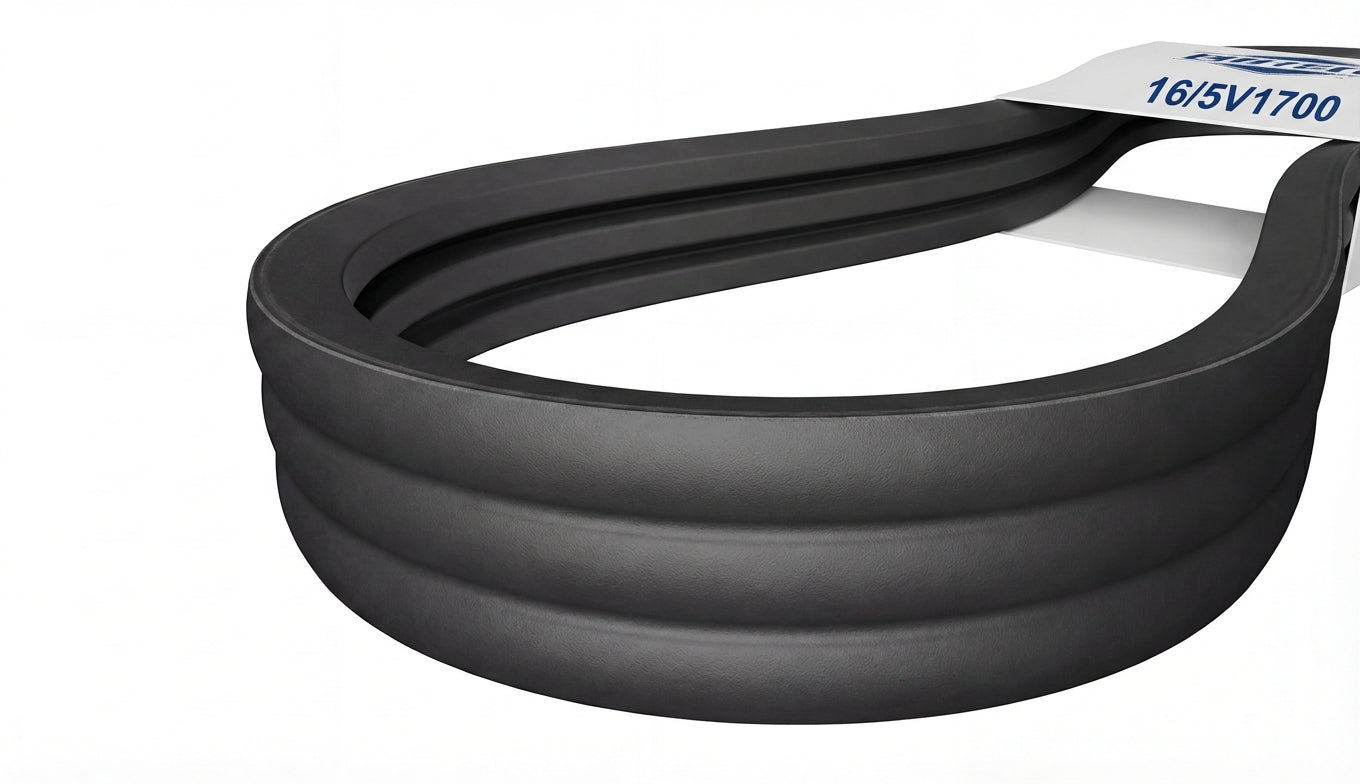

The 16/5V1700 is a factory-joined 16-band 5V banded belt assembly measuring 10.45" wide x 170.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224423

$1,175.09

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	16/5V1700
Top Width	10.45 in / 265.43 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	169.0 in / 4292.6 mm
Outside Length	170.6 in / 4333.2 mm
Effective Length	170.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	16
