15/5V750

Top Width: 9.795" (248.79mm)
Outside Length: 75.6" (1920.2mm)
Inside Length: 74" (1879.6mm)
Min Pulley Diameter: 7.1"
Configuration: 15-Band Set

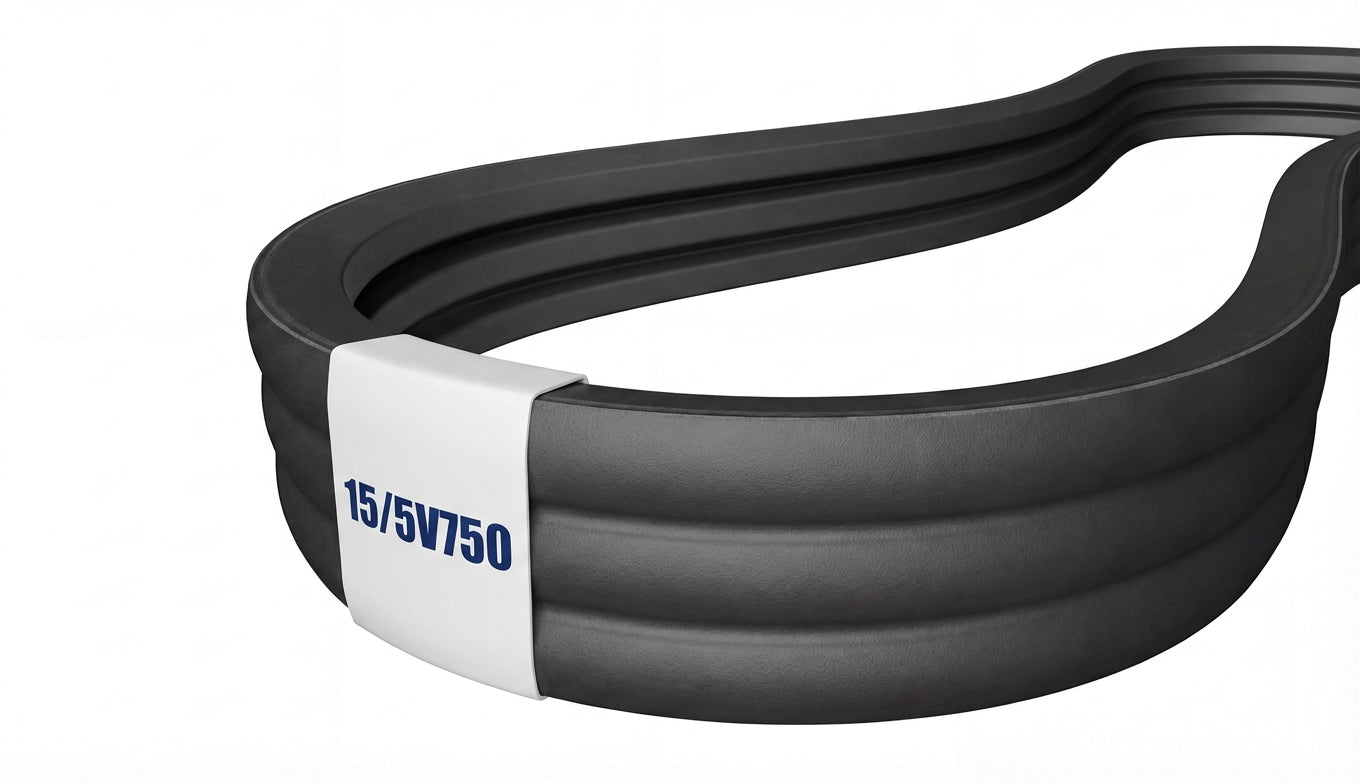

The 15/5V750 is a factory-joined 15-band 5V banded belt assembly measuring 9.795" wide x 75.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224370

$477.48

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	15/5V750
Top Width	9.795 in / 248.79 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	74.0 in / 1879.6 mm
Outside Length	75.6 in / 1920.2 mm
Effective Length	75.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	15
