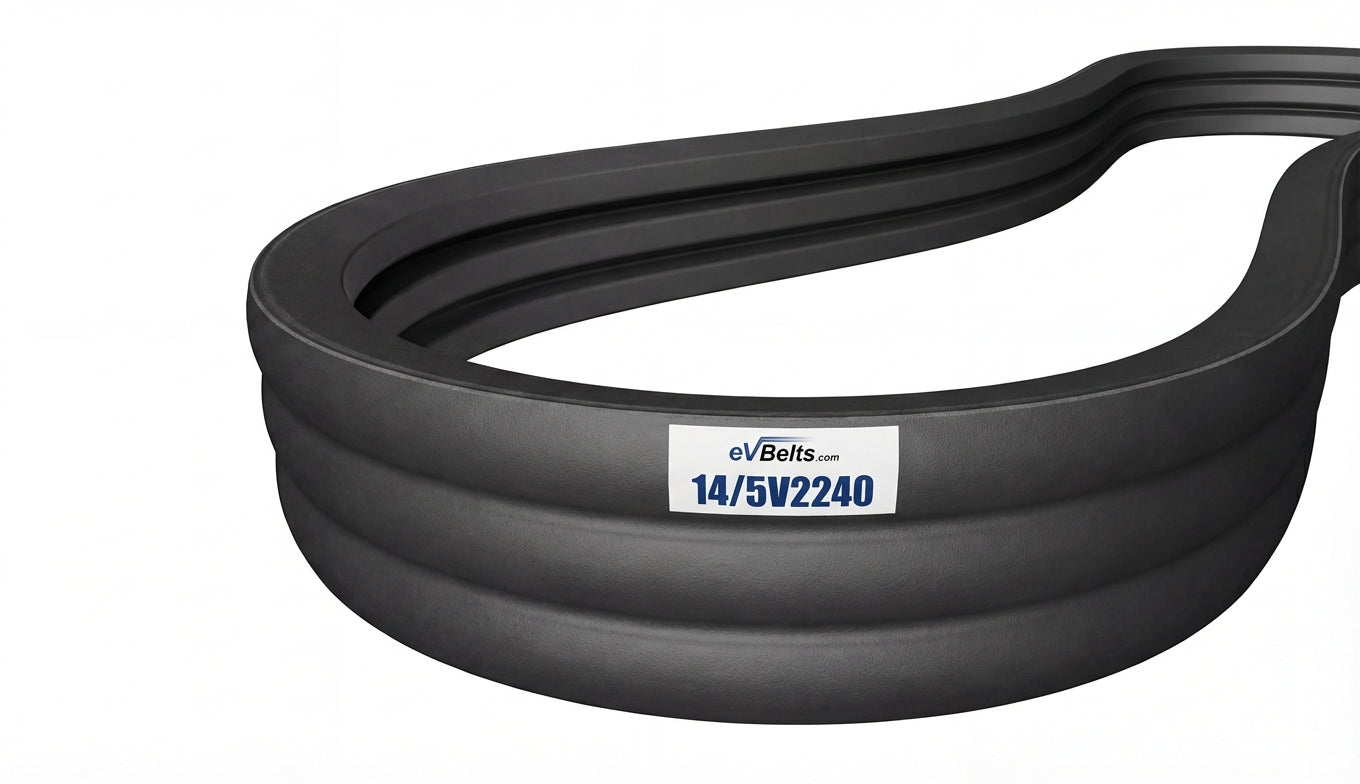

14/5V2240

Top Width: 9.14" (232.16mm)
Outside Length: 224.6" (5704.8mm)
Inside Length: 223" (5664.2mm)
Min Pulley Diameter: 7.1"
Configuration: 14-Band Set

The 14/5V2240 is a factory-joined 14-band 5V banded belt assembly measuring 9.14" wide x 224.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224354

$1,370.94

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	14/5V2240
Top Width	9.14 in / 232.16 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	223.0 in / 5664.2 mm
Outside Length	224.6 in / 5704.8 mm
Effective Length	224.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	14
