13/5V1210

Top Width: 8.485" (215.52mm)
Outside Length: 121.6" (3088.6mm)
Inside Length: 120" (3048mm)
Min Pulley Diameter: 7.1"
Configuration: 13-Band Set

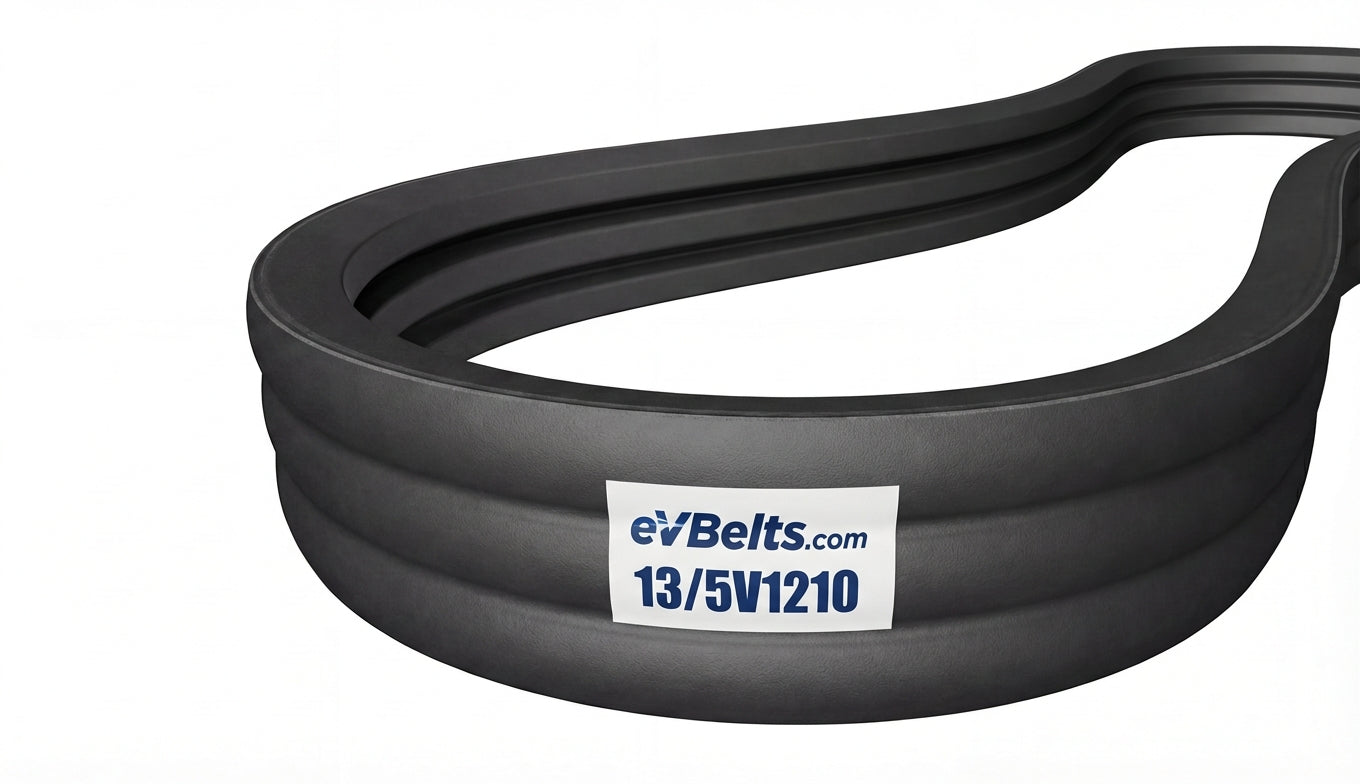

The 13/5V1210 is a factory-joined 13-band 5V banded belt assembly measuring 8.485" wide x 121.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224307

$646.57

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	13/5V1210
Top Width	8.485 in / 215.52 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	120.0 in / 3048.0 mm
Outside Length	121.6 in / 3088.6 mm
Effective Length	121.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	13
