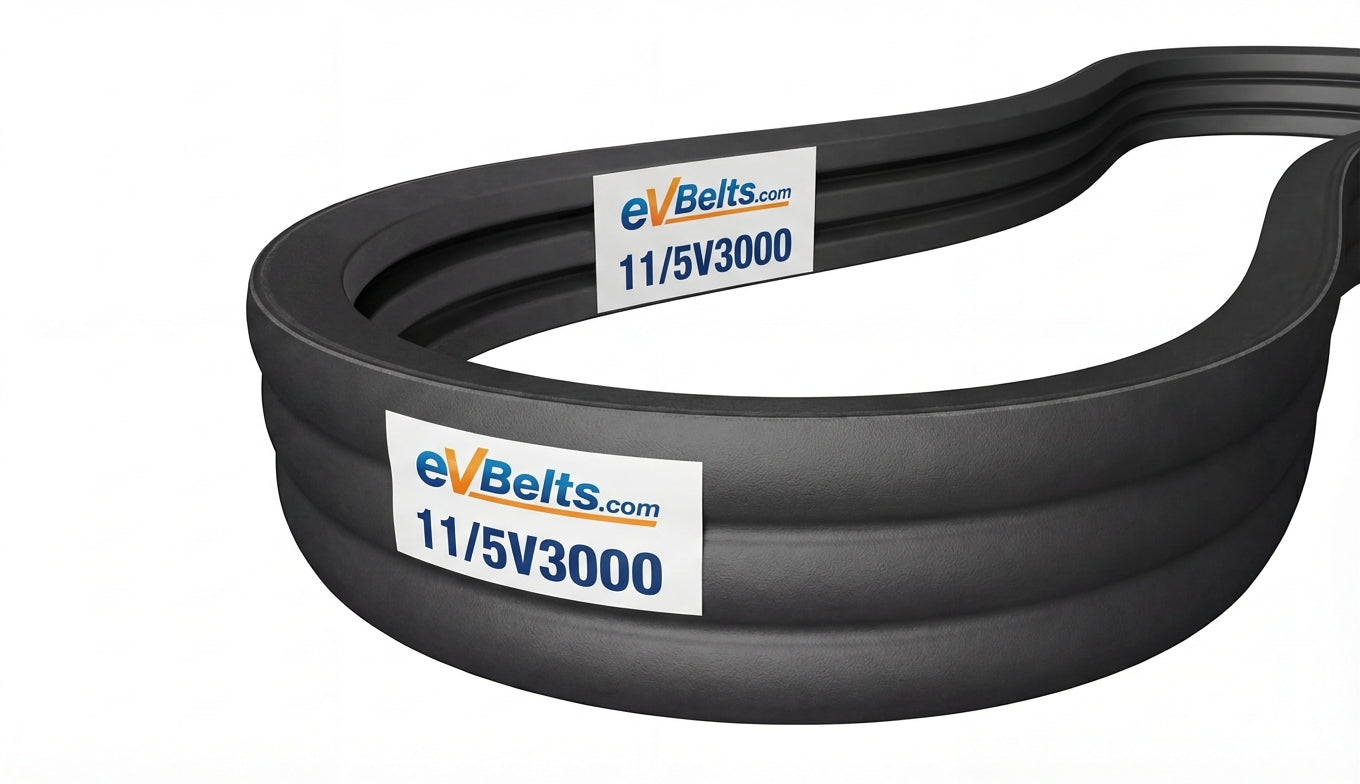

11/5V3000

Top Width: 7.175" (182.24mm)
Outside Length: 300.6" (7635.2mm)
Inside Length: 299" (7594.6mm)
Min Pulley Diameter: 7.1"
Configuration: 11-Band Set

The 11/5V3000 is a factory-joined 11-band 5V banded belt assembly measuring 7.175" wide x 300.6" long, featuring oil and heat resistant rubber construction.

SKU: 1224248

$1,451.54

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	11/5V3000
Top Width	7.175 in / 182.24 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	299.0 in / 7594.6 mm
Outside Length	300.6 in / 7635.2 mm
Effective Length	300.0 in
Min Sheave Diameter	7.1 in / 180.3 mm
Ribs	11
