The 3VX520 is a cogged (notched) V-belt measuring 0.375" wide x 52.3" long, offering improved flexibility around smaller pulleys.

3VX520 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 52.3" (1328.4mm)
• Inside Length: 51.5" (1308.1mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX520 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX540 is a cogged (notched) V-belt measuring 0.375" wide x 54.3" long, offering improved flexibility around smaller pulleys.

3VX540 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 54.3" (1379.2mm)
• Inside Length: 53.5" (1358.9mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX540 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX570 is a cogged (notched) V-belt measuring 0.375" wide x 57.3" long, offering improved flexibility around smaller pulleys.

3VX570 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 57.3" (1455.4mm)
• Inside Length: 56.5" (1435.1mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX570 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX550 is a cogged (notched) V-belt measuring 0.375" wide x 55.3" long, offering improved flexibility around smaller pulleys.

3VX550 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 55.3" (1404.6mm)
• Inside Length: 54.5" (1384.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX550 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX590 is a cogged (notched) V-belt measuring 0.375" wide x 59.3" long, offering improved flexibility around smaller pulleys.

3VX590 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 59.3" (1506.2mm)
• Inside Length: 58.5" (1485.9mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX590 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX580 is a cogged (notched) V-belt measuring 0.375" wide x 58.3" long, offering improved flexibility around smaller pulleys.

3VX580 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 58.3" (1480.8mm)
• Inside Length: 57.5" (1460.5mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX580 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX650 is a cogged (notched) V-belt measuring 0.375" wide x 65.3" long, offering improved flexibility around smaller pulleys.

3VX650 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 65.3" (1658.6mm)
• Inside Length: 64.5" (1638.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX650 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX616 is a cogged (notched) V-belt measuring 0.375" wide x 61.9" long, offering improved flexibility around smaller pulleys.

3VX616 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 61.9" (1572.3mm)
• Inside Length: 61.1" (1551.9mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX616 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX771 is a cogged (notched) V-belt measuring 0.375" wide x 77.4" long, offering improved flexibility around smaller pulleys.

3VX771 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 77.4" (1966mm)
• Inside Length: 76.6" (1945.6mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX771 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX690 is a cogged (notched) V-belt measuring 0.375" wide x 69.3" long, offering improved flexibility around smaller pulleys.

3VX690 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 69.3" (1760.2mm)
• Inside Length: 68.5" (1739.9mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX690 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX826 is a cogged (notched) V-belt measuring 0.375" wide x 82.9" long, offering improved flexibility around smaller pulleys.

3VX826 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 82.9" (2105.7mm)
• Inside Length: 82.1" (2085.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX826 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX926 is a cogged (notched) V-belt measuring 0.375" wide x 92.9" long, offering improved flexibility around smaller pulleys.

3VX926 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 92.9" (2359.7mm)
• Inside Length: 92.1" (2339.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX926 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX974 is a cogged (notched) V-belt measuring 0.375" wide x 97.7" long, offering improved flexibility around smaller pulleys.

3VX974 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 97.7" (2481.6mm)
• Inside Length: 96.9" (2461.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX974 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX1027 is a cogged (notched) V-belt measuring 0.375" wide x 103" long, offering improved flexibility around smaller pulleys.

3VX1027 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 103" (2616.2mm)
• Inside Length: 102.2" (2595.9mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX1027 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX1088 is a cogged (notched) V-belt measuring 0.375" wide x 109.1" long, offering improved flexibility around smaller pulleys.

3VX1088 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 109.1" (2771.1mm)
• Inside Length: 108.3" (2750.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX1088 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX1146 is a cogged (notched) V-belt measuring 0.375" wide x 114.9" long, offering improved flexibility around smaller pulleys.

3VX1146 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 114.9" (2918.5mm)
• Inside Length: 114.1" (2898.1mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX1146 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX1224 is a cogged (notched) V-belt measuring 0.375" wide x 122.7" long, offering improved flexibility around smaller pulleys.

3VX1224 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 122.7" (3116.6mm)
• Inside Length: 121.9" (3096.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX1224 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX1296 is a cogged (notched) V-belt measuring 0.375" wide x 129.9" long, offering improved flexibility around smaller pulleys.

3VX1296 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 129.9" (3299.5mm)
• Inside Length: 129.1" (3279.1mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX1296 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX1500 is a cogged (notched) V-belt measuring 0.375" wide x 150.3" long, offering improved flexibility around smaller pulleys.

3VX1500 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 150.3" (3817.6mm)
• Inside Length: 149.5" (3797.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX1500 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX250 is a cogged (notched) V-belt measuring 0.375" wide x 25.3" long, offering improved flexibility around smaller pulleys.

3VX250 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 25.3" (642.6mm)
• Inside Length: 24.5" (622.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX250

• BUSH HOG: S2952
• SHAW: S2952

The 3VX250 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX265 is a cogged (notched) V-belt measuring 0.375" wide x 26.8" long, offering improved flexibility around smaller pulleys.

3VX265 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 26.8" (680.7mm)
• Inside Length: 26" (660.4mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX265

• ARIENS / GRAVELY: 26119HAHN-ECLIPSE
• THERMO KING: 78766TORO
• WHEEL HORSE: 252286

The 3VX265 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX280 is a cogged (notched) V-belt measuring 0.375" wide x 28.3" long, offering improved flexibility around smaller pulleys.

3VX280 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 28.3" (718.8mm)
• Inside Length: 27.5" (698.5mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX280

• GOODALL: W00660
• HAHN: ECLIPSE
• HAHN: ECLIPSE
• RYAN: 548444RYAN

The 3VX280 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX300 is a cogged (notched) V-belt measuring 0.375" wide x 30.3" long, offering improved flexibility around smaller pulleys.

3VX300 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 30.3" (769.6mm)
• Inside Length: 29.5" (749.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

The 3VX300 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX315 is a cogged (notched) V-belt measuring 0.375" wide x 31.8" long, offering improved flexibility around smaller pulleys.

3VX315 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 31.8" (807.7mm)
• Inside Length: 31" (787.4mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX315

• OWATTONA: 2032167
• BOLENS: 1719444
• HUSQVARNA: 506070506
• MTD/CUB CADET: 7540133
• PARTNER: 506070506
• ROTARY: 7438
• SUNBELT: B1MT347
• WALKER: 7231-1
• WHITE: 32-002003
• WHITE: 320002003

The 3VX315 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX335 is a cogged (notched) V-belt measuring 0.375" wide x 33.8" long, offering improved flexibility around smaller pulleys.

3VX335 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 33.8" (858.5mm)
• Inside Length: 33" (838.2mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX335

• ARIENS / GRAVELY: 26121ARIENS
• GRAVELY: 72286A
• CASE/IH: C23902
• GAMBLE SKOGMO: 358GENERAL
• ELECTRIC: 358HAHN-ECLIPSE
• HAHN: ECLIPSE
• HAHN: ECLIPSE
• MTD/CUB CADET: 7540123MTD
• CUB CADET: 954-0123TORO
• WHEEL HORSE: 517433WALKER

The 3VX335 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX355 is a cogged (notched) V-belt measuring 0.375" wide x 35.8" long, offering improved flexibility around smaller pulleys.

3VX355 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 35.8" (909.3mm)
• Inside Length: 35" (889mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX355

• CASE/IH: 475006DITCH
• WITCH: 170-036
• DITCH WITCH: 170036GAMBLE
• SKOGMO: 211A3226P5GENERAL
• ELECTRIC: 211A3226P5HECKENDORN
• TORO / WHEEL HORSE: 517434TORO
• WHEEL HORSE: 517432WHITE

The 3VX355 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX375 is a cogged (notched) V-belt measuring 0.375" wide x 37.8" long, offering improved flexibility around smaller pulleys.

3VX375 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 37.8" (960.1mm)
• Inside Length: 37" (939.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX375

• PRODUCTS PARTS: 6250CAMPBELL-HAUSFELD
• BT0091 CASE/IH: V35052
• DITCH WITCH: 170-041
• DITCH WITCH: 170040HESSTON
• MTD/CUB CADET: 7540132MTD
• CUB CADET: 954-0132SUNBELT
• B1SN200 TORO / WHEEL HORSE: 244210

The 3VX375 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX400 is a cogged (notched) V-belt measuring 0.375" wide x 40.3" long, offering improved flexibility around smaller pulleys.

3VX400 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 40.3" (1023.6mm)
• Inside Length: 39.5" (1003.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX400

• ARIENS / GRAVELY: 7084
• Atlas Copco: 2014-2001-91
• CAMPBELL: HAUSFELD
• BT0090 FORD: 331325
• GAMBLE SKOGMO: 211A3226P10
• GENERAL ELECTRIC: 211A3226P10
• HECKENDORN: 362848
• HECKENDORN: 362888
• JACOBSEN: 331325
• QUINCY: 128085-240
• RYAN: 548447
• SENSATION: 153204
• SHAW: S3022
• TORO / WHEEL HORSE: 517435
• TORO / WHEEL HORSE: 517438

The 3VX400 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

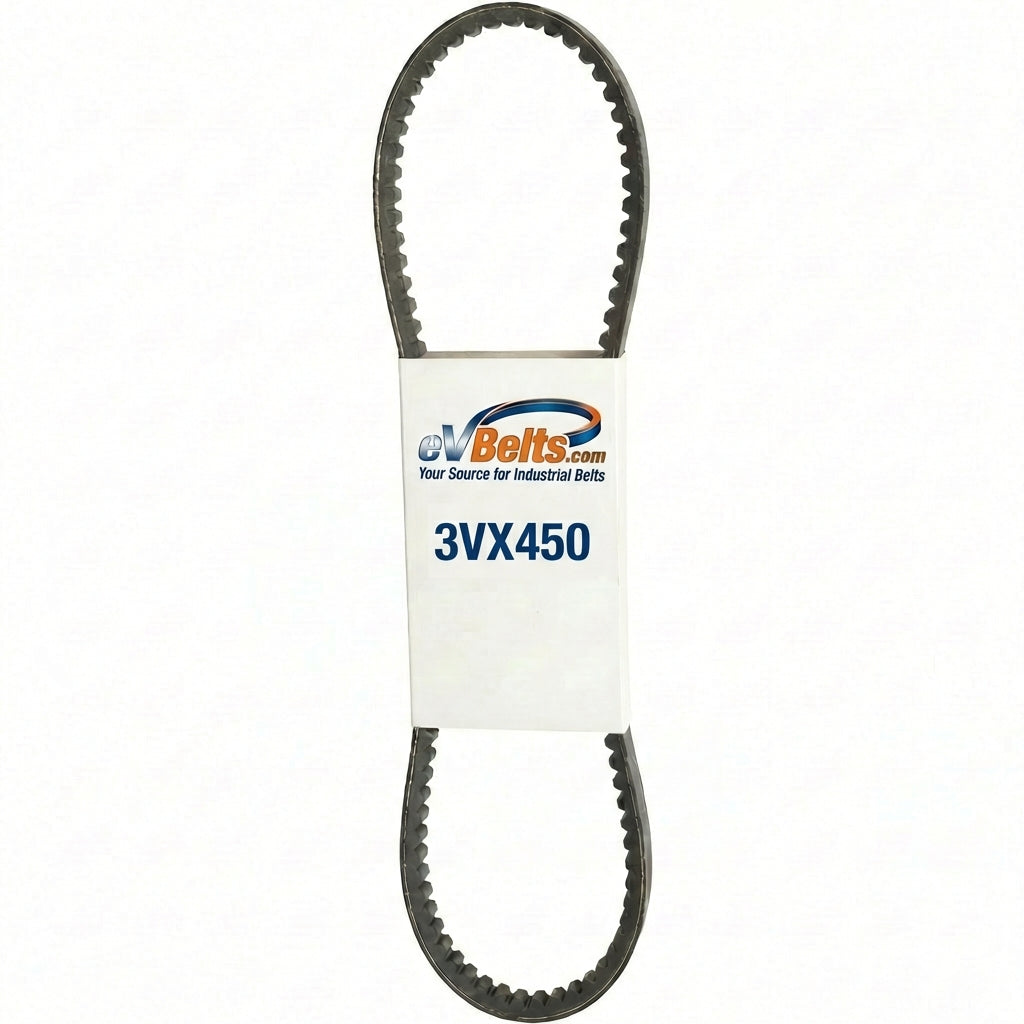

The 3VX450 is a cogged (notched) V-belt measuring 0.375" wide x 45.3" long, offering improved flexibility around smaller pulleys.

3VX450 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 45.3" (1150.6mm)
• Inside Length: 44.5" (1130.3mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX450

• ARIENS / GRAVELY: 32330
• Atlas Copco: 2014-2002-05
• Atlas Copco: 2014-2002-15
• DITCH WITCH: 170-038
• DITCH WITCH: 170038
• FORD: GB231362
• GSI/GRAIN SYSTEMS, INC: MHC00667
• HECKENDORN: 3626
• HECKENDORN: 362648
• HECKENDORN: 362688
• QUINCY: 128085-445
• QUINCY: 128085-545
• SNAPPER: 205345

The 3VX450 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 3VX425 is a cogged (notched) V-belt measuring 0.375" wide x 42.8" long, offering improved flexibility around smaller pulleys.

3VX425 Specifications

• Top Width: 0.375" (9.52mm)
• Outside Length: 42.8" (1087.1mm)
• Inside Length: 42" (1066.8mm)
• Min Pulley Diameter: 2.2"
• Profile: Cogged/Notched

OEM Part Numbers Replaced by 3VX425

• Bando: 3VX425
• Ditch Witch: 170037
• Gates: 3VX425
• Ford New Holland: 259347
• Ford New Holland: 640891
• Quincy: 128085-442
• Quincy: 128085-242
• Snapper: 12021
• Snapper: 14276

The 3VX425 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
