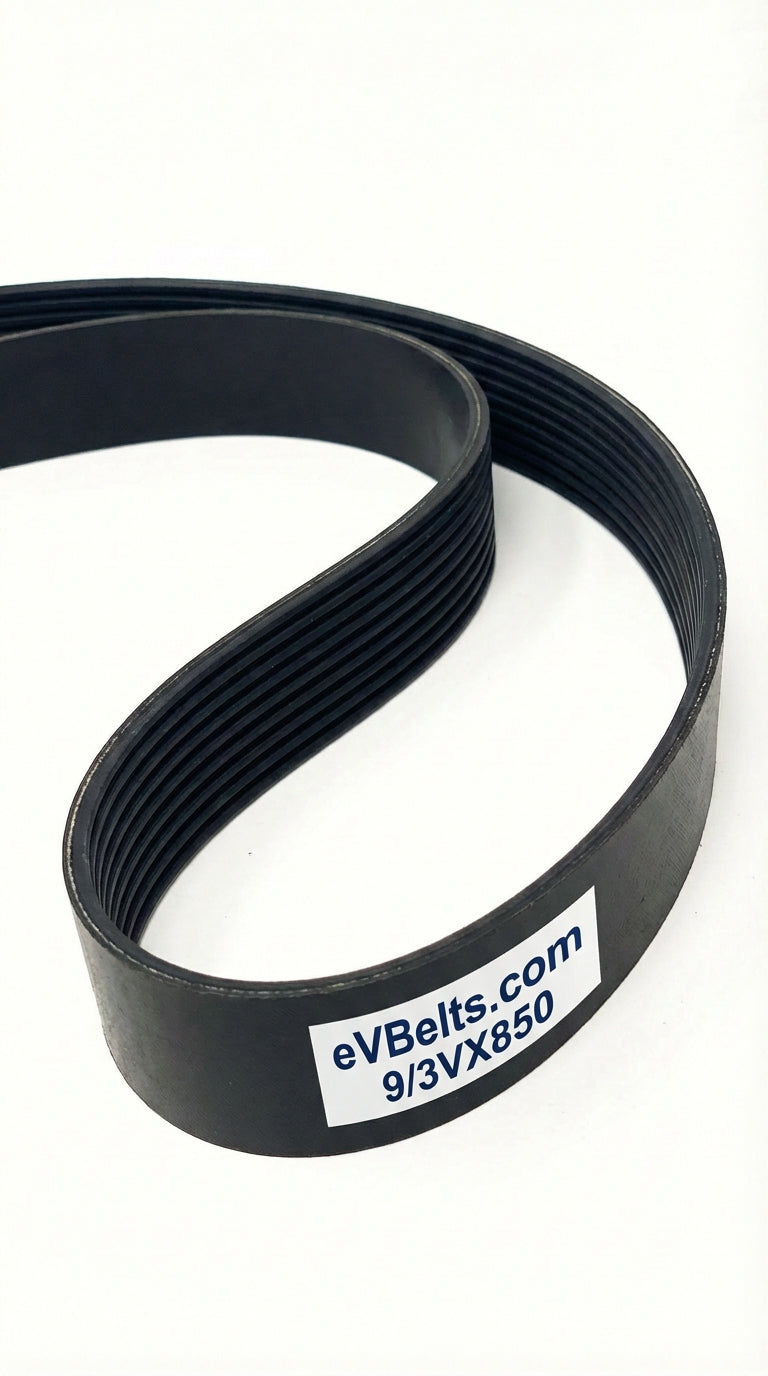

9/3VX850

Top Width: 3.615" (91.82mm)
Outside Length: 85.3" (2166.6mm)
Inside Length: 84.5" (2146.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 9-Band Set

The 9/3VX850 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 85.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225758

$141.04

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	9/3VX850
Top Width	3.615 in / 91.82 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	84.5 in / 2146.3 mm
Outside Length	85.3 in / 2166.6 mm
Effective Length	85.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	9
Cogged	Yes
