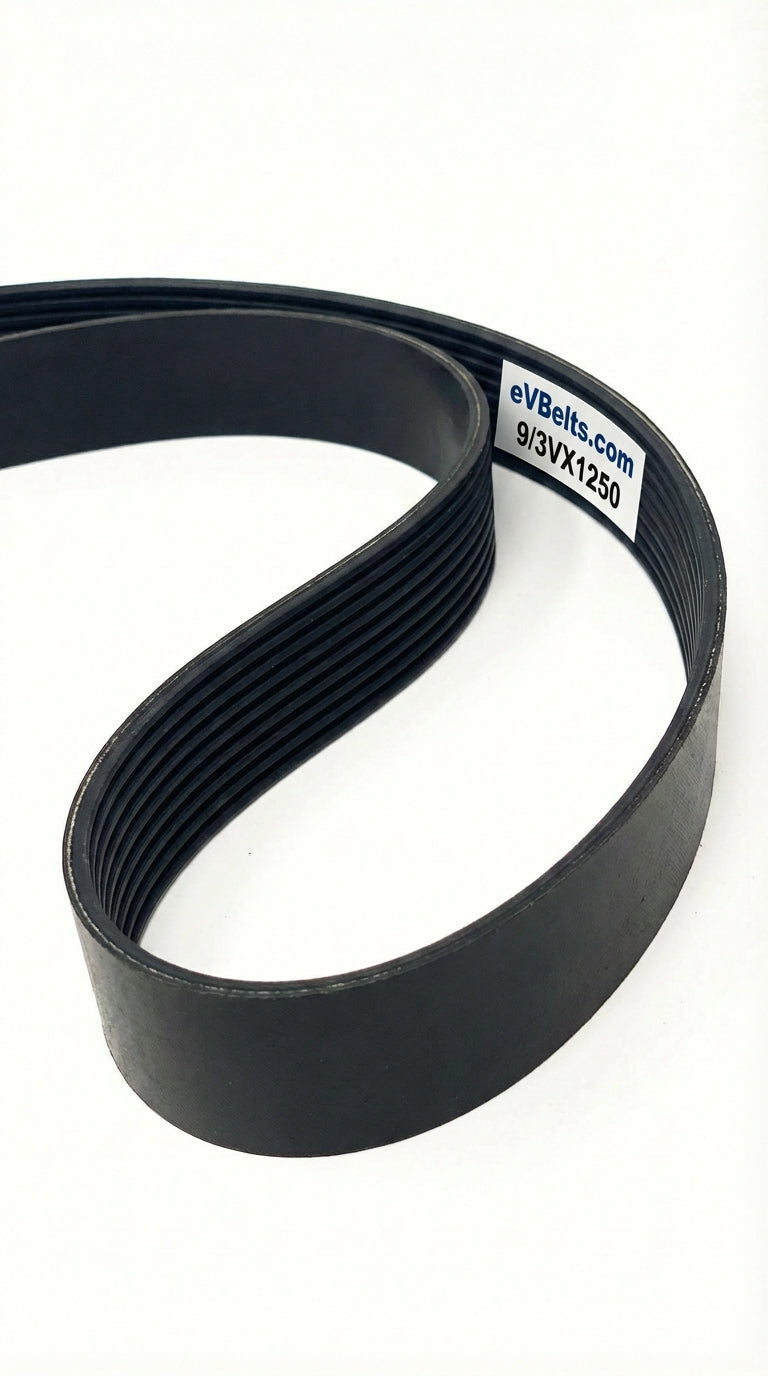

9/3VX1250

Top Width: 3.615" (91.82mm)
Outside Length: 125.3" (3182.6mm)
Inside Length: 124.5" (3162.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 9-Band Set

The 9/3VX1250 is a factory-joined 9-band 3VX banded belt assembly measuring 3.615" wide x 125.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225766

$221.92

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	9/3VX1250
Top Width	3.615 in / 91.82 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	124.5 in / 3162.3 mm
Outside Length	125.3 in / 3182.6 mm
Effective Length	125.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	9
Cogged	Yes
