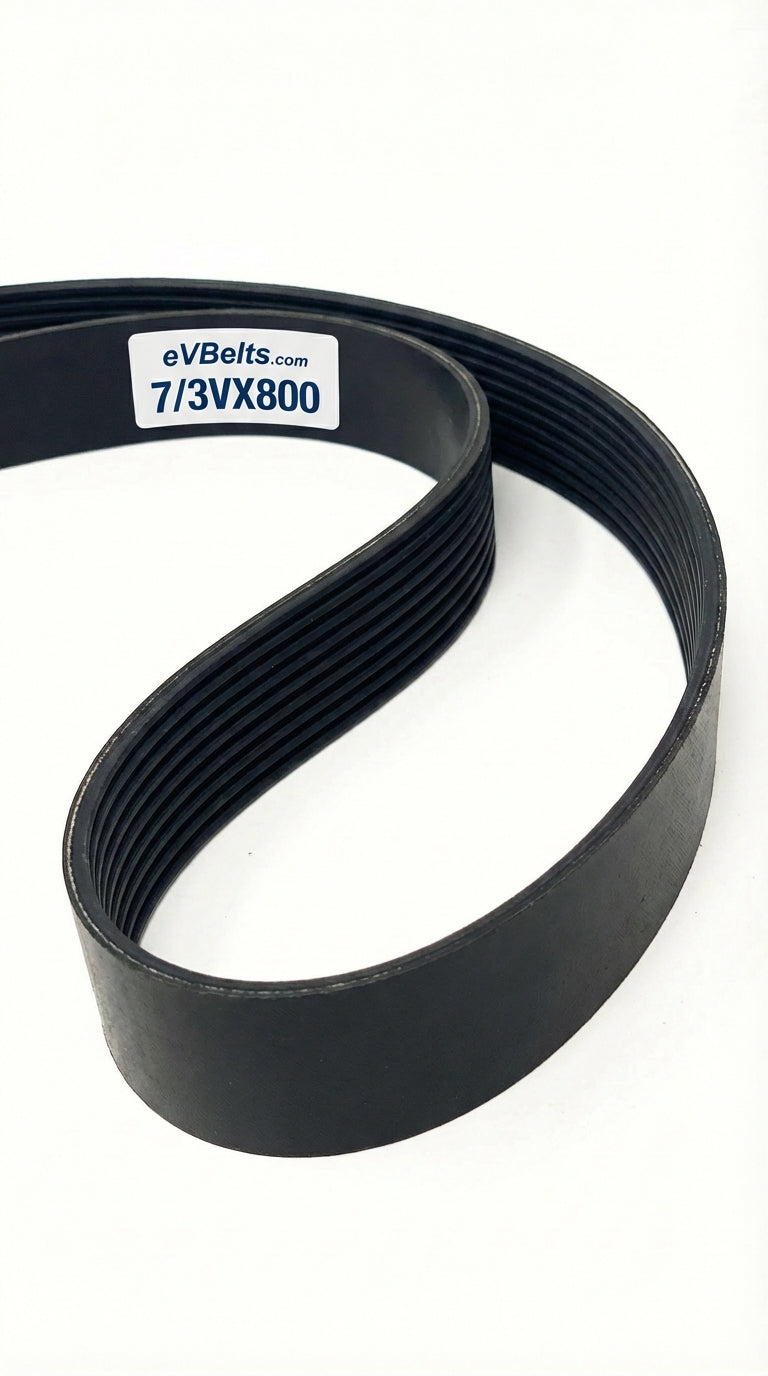

7/3VX800

Top Width: 2.805" (71.25mm)
Outside Length: 80.3" (2039.6mm)
Inside Length: 79.5" (2019.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 7-Band Set

The 7/3VX800 is a factory-joined 7-band 3VX banded belt assembly measuring 2.805" wide x 80.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225699

$102.38

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	7/3VX800
Top Width	2.805 in / 71.25 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	79.5 in / 2019.3 mm
Outside Length	80.3 in / 2039.6 mm
Effective Length	80.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	7
Cogged	Yes
