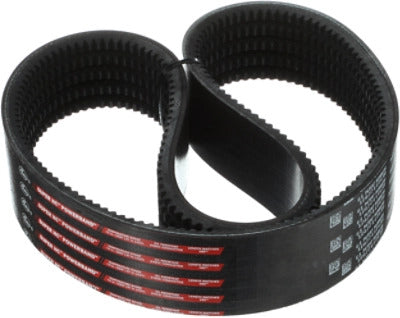

5/3VX280

Top Width: 1.995" (50.67mm)
Outside Length: 28.3" (718.8mm)
Inside Length: 27.5" (698.5mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 5-Band Set

The 5/3VX280 is a factory-joined 5-band 3VX banded belt assembly measuring 1.995" wide x 28.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225623

$29.86

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	5/3VX280
Top Width	1.995 in / 50.67 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	27.5 in / 698.5 mm
Outside Length	28.3 in / 718.8 mm
Effective Length	28.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	5
Cogged	Yes
