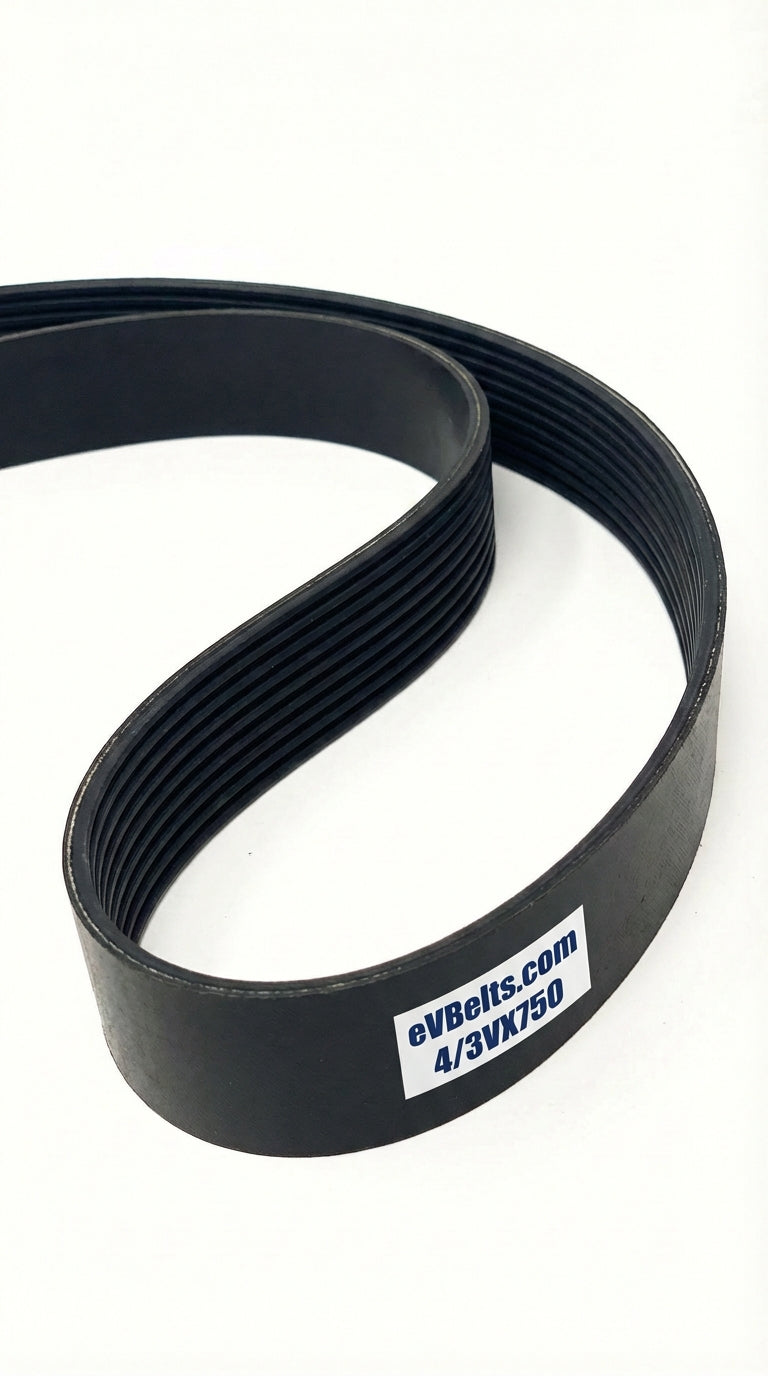

4/3VX750
The 4/3VX750 is a factory-joined 4-band 3VX banded belt assembly measuring 1.59" wide x 75.3" long, offering improved flexibility around smaller pulleys.
SKU: 1225608
$38.77
3877
Only 6 Left!
Estimated delivery between June 23 and June 25.
Technical Specifications
| Part Number | 4/3VX750 |
| Top Width | 1.59 in / 40.39 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 74.5 in / 1892.3 mm |
| Outside Length | 75.3 in / 1912.6 mm |
| Effective Length | 75.0 in |
| Min Sheave Diameter | 2.2 in / 55.9 mm |
| Ribs | 4 |
| Cogged | Yes |
