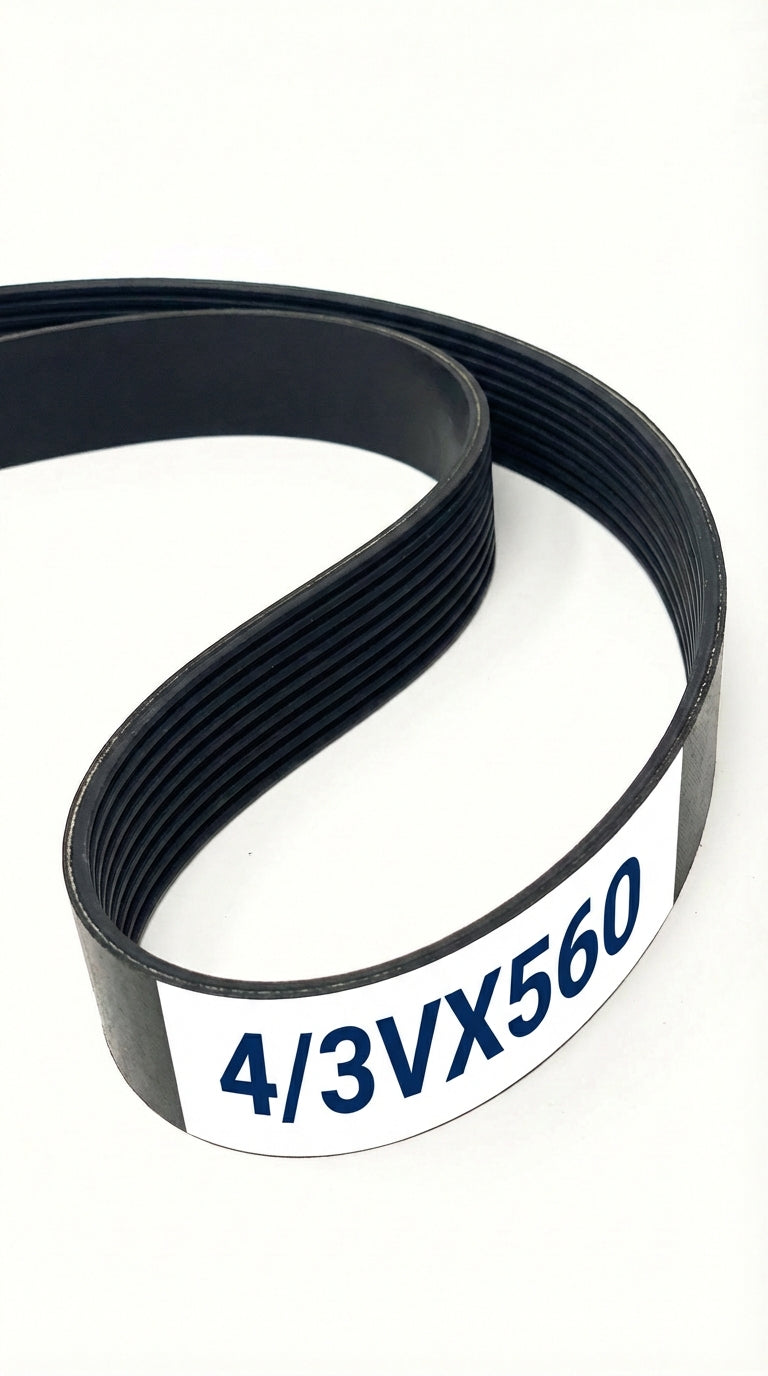

4/3VX560

Top Width: 1.59" (40.39mm)
Outside Length: 56.3" (1430mm)
Inside Length: 55.5" (1409.7mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 4-Band Set

The 4/3VX560 is a factory-joined 4-band 3VX banded belt assembly measuring 1.59" wide x 56.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225603

$27.85

107 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	4/3VX560
Top Width	1.59 in / 40.39 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	55.5 in / 1409.7 mm
Outside Length	56.3 in / 1430.0 mm
Effective Length	56.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	4
Cogged	Yes
