4/3VX250

Top Width: 1.59" (40.39mm)
Outside Length: 25.3" (642.6mm)
Inside Length: 24.5" (622.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 4-Band Set

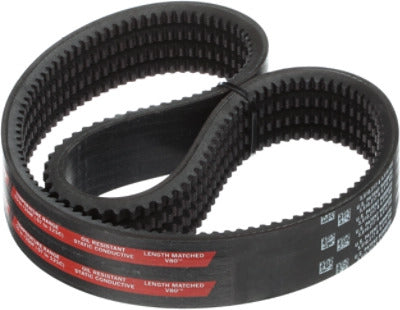

The 4/3VX250 is a factory-joined 4-band 3VX banded belt assembly measuring 1.59" wide x 25.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225589

$26.17

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	4/3VX250
Top Width	1.59 in / 40.39 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	24.5 in / 622.3 mm
Outside Length	25.3 in / 642.6 mm
Effective Length	25.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	4
Cogged	Yes
