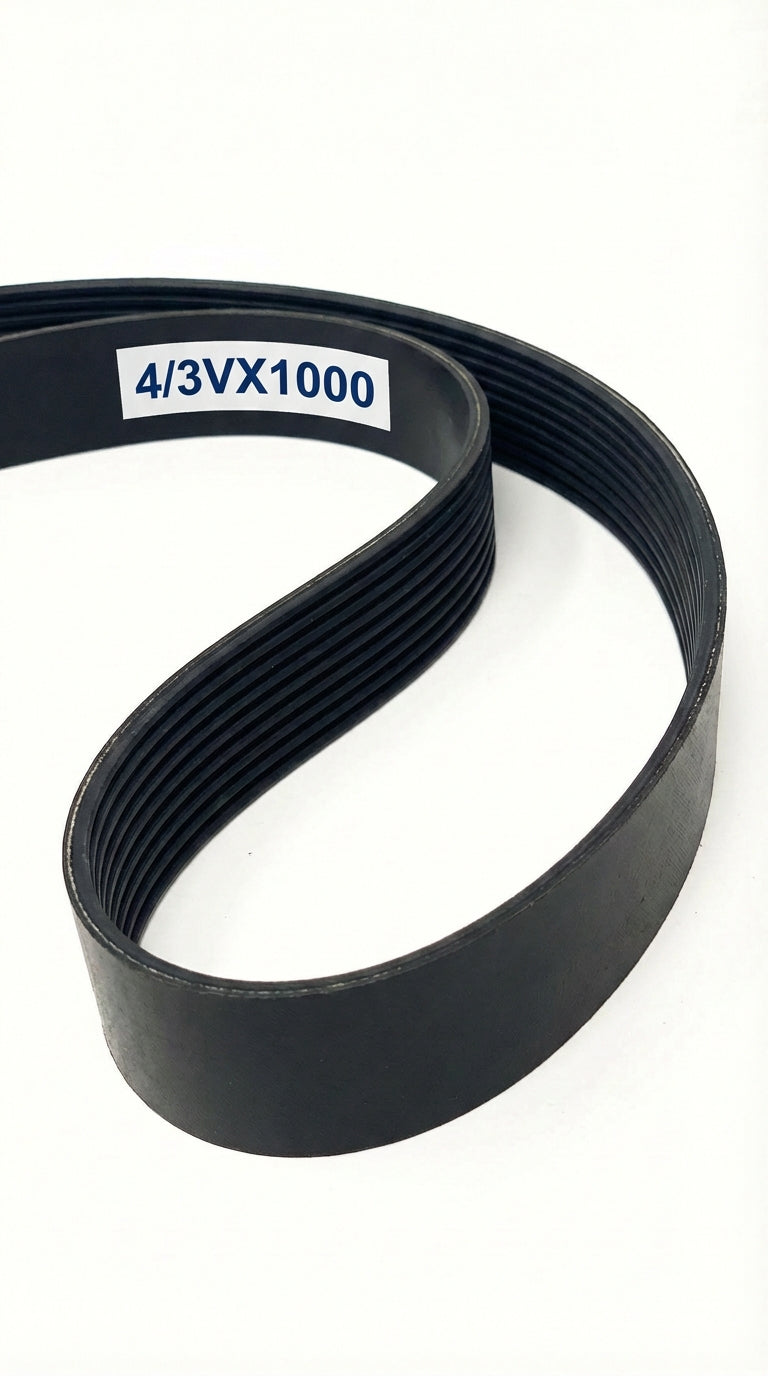

4/3VX1000

Top Width: 1.59" (40.39mm)
Outside Length: 100.3" (2547.6mm)
Inside Length: 99.5" (2527.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 4-Band Set

The 4/3VX1000 is a factory-joined 4-band 3VX banded belt assembly measuring 1.59" wide x 100.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225614

$53.16

Only 4 Left!

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	4/3VX1000
Top Width	1.59 in / 40.39 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	99.5 in / 2527.3 mm
Outside Length	100.3 in / 2547.6 mm
Effective Length	100.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	4
Cogged	Yes
