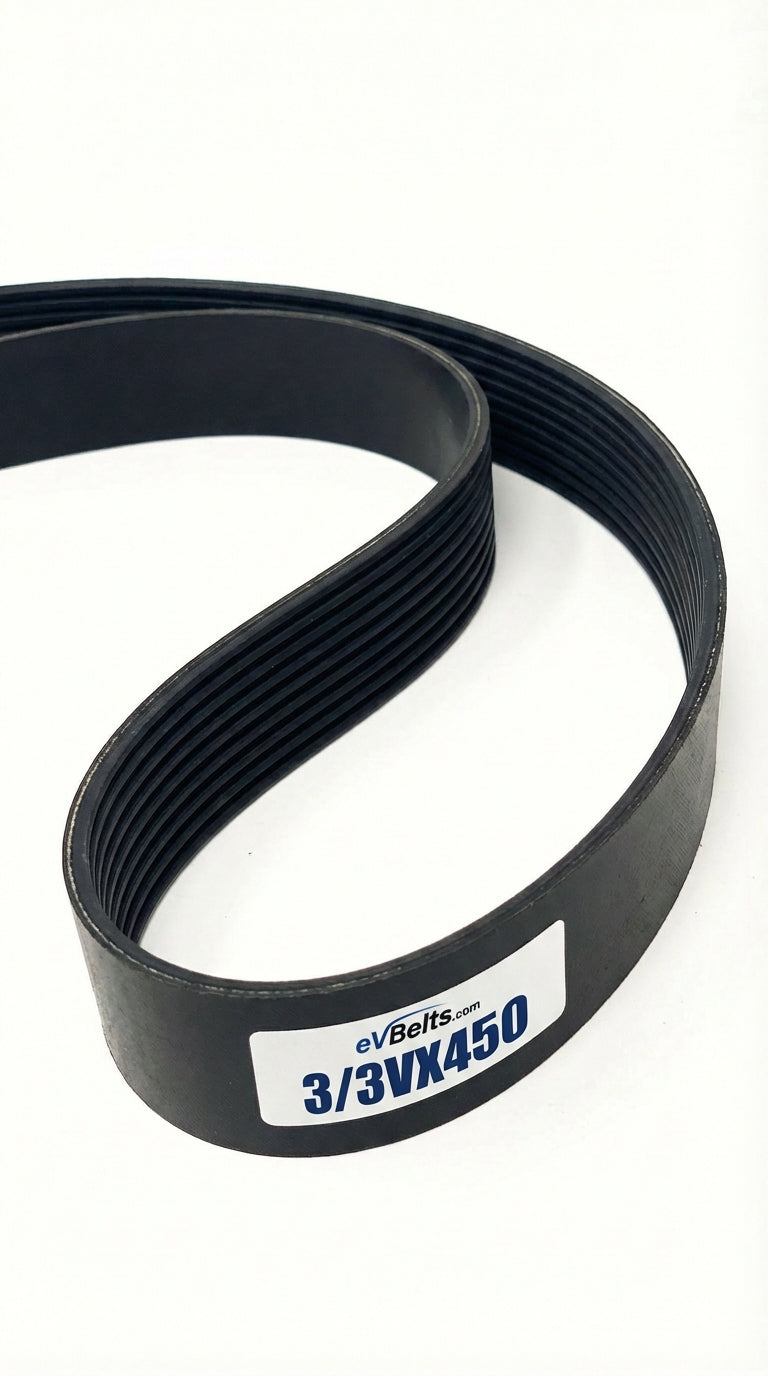

3/3VX450

Top Width: 1.185" (30.1mm)
Outside Length: 45.3" (1150.6mm)
Inside Length: 44.5" (1130.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 3-Band Set

The 3/3VX450 is a factory-joined 3-band 3VX banded belt assembly measuring 1.185" wide x 45.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225567

$19.64

21 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	3/3VX450
Top Width	1.185 in / 30.1 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	44.5 in / 1130.3 mm
Outside Length	45.3 in / 1150.6 mm
Effective Length	45.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	3
Cogged	Yes
