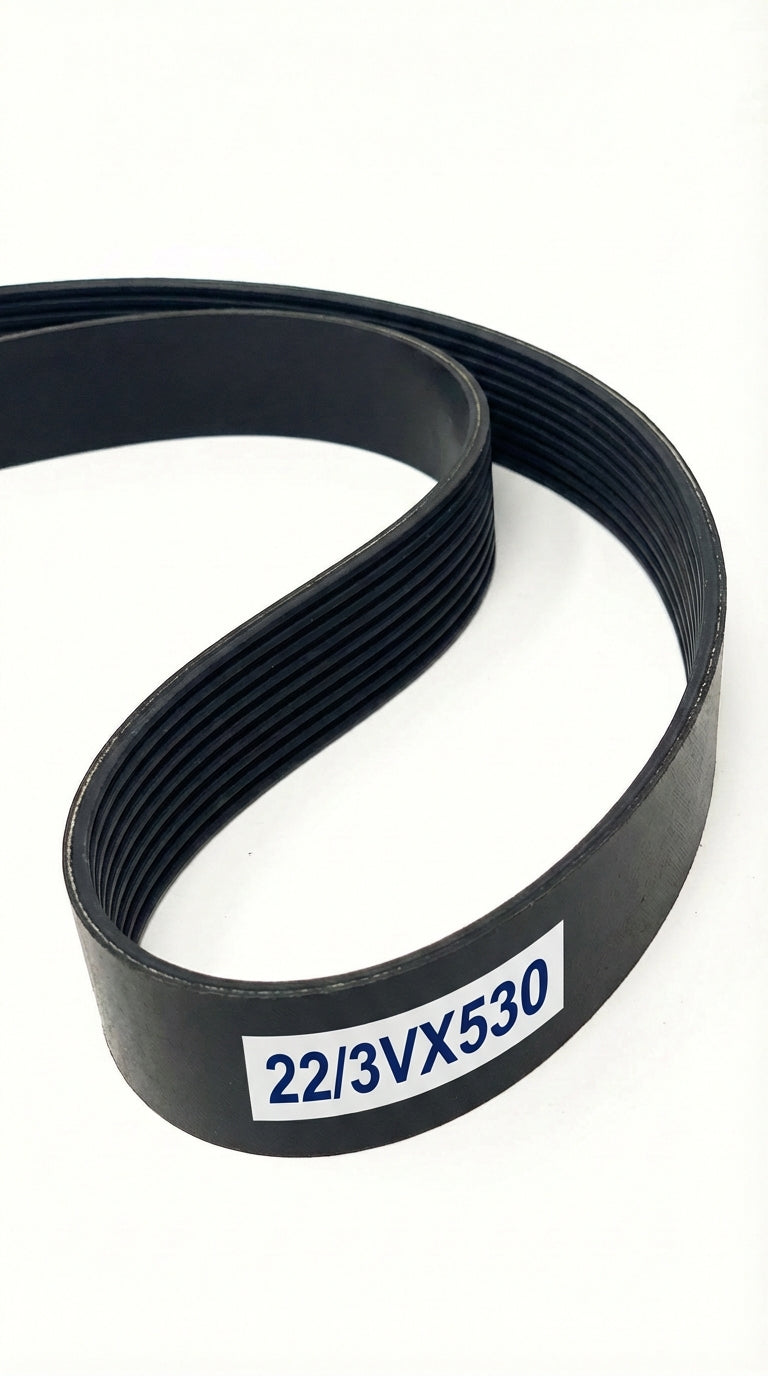

22/3VX530

Top Width: 8.88" (225.55mm)
Outside Length: 53.3" (1353.8mm)
Inside Length: 52.5" (1333.5mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 22-Band Set

The 22/3VX530 is a factory-joined 22-band 3VX banded belt assembly measuring 8.88" wide x 53.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225538

$239.49

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	22/3VX530
Top Width	8.88 in / 225.55 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	52.5 in / 1333.5 mm
Outside Length	53.3 in / 1353.8 mm
Effective Length	53.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	22
Cogged	Yes
