22/3VX400

Top Width: 8.88" (225.55mm)
Outside Length: 40.3" (1023.6mm)
Inside Length: 39.5" (1003.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 22-Band Set

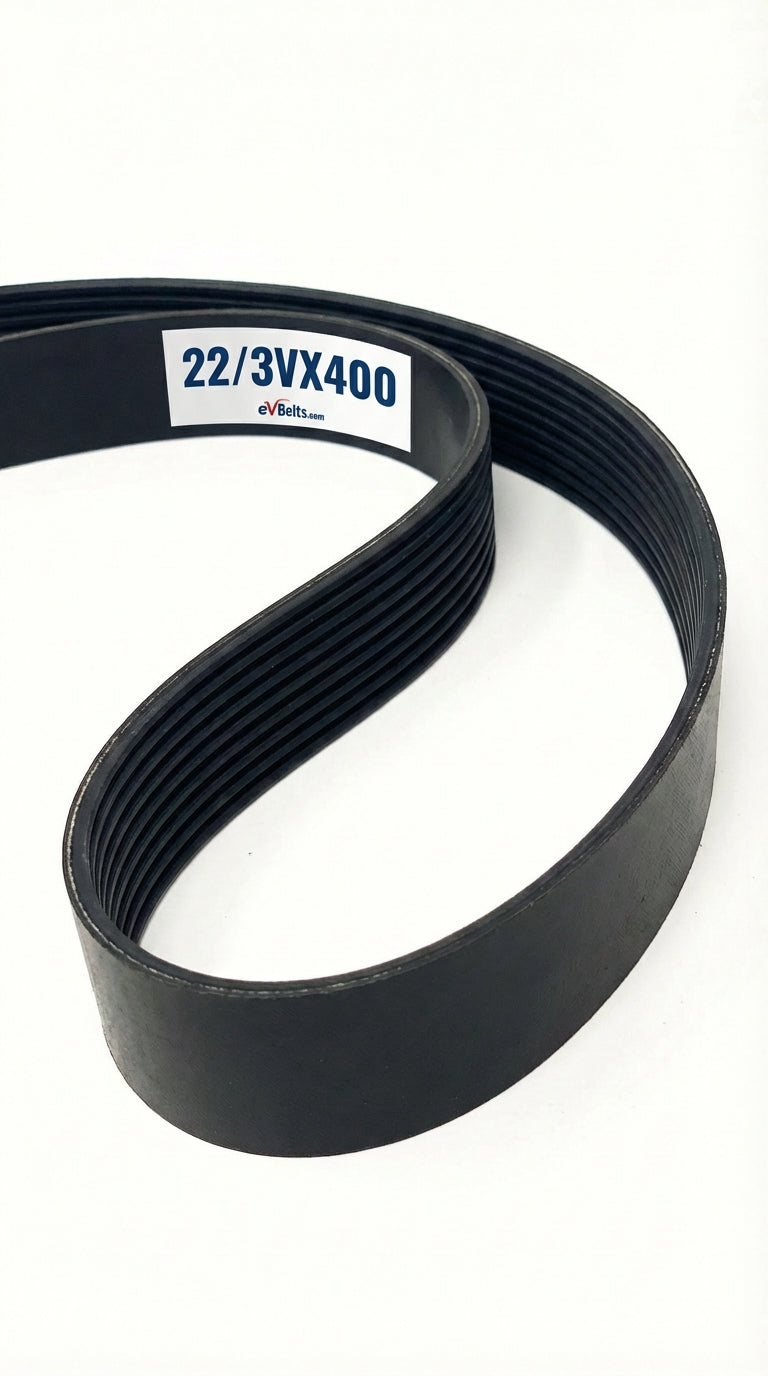

The 22/3VX400 is a factory-joined 22-band 3VX banded belt assembly measuring 8.88" wide x 40.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225533

$195.29

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	22/3VX400
Top Width	8.88 in / 225.55 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	39.5 in / 1003.3 mm
Outside Length	40.3 in / 1023.6 mm
Effective Length	40.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	22
Cogged	Yes
