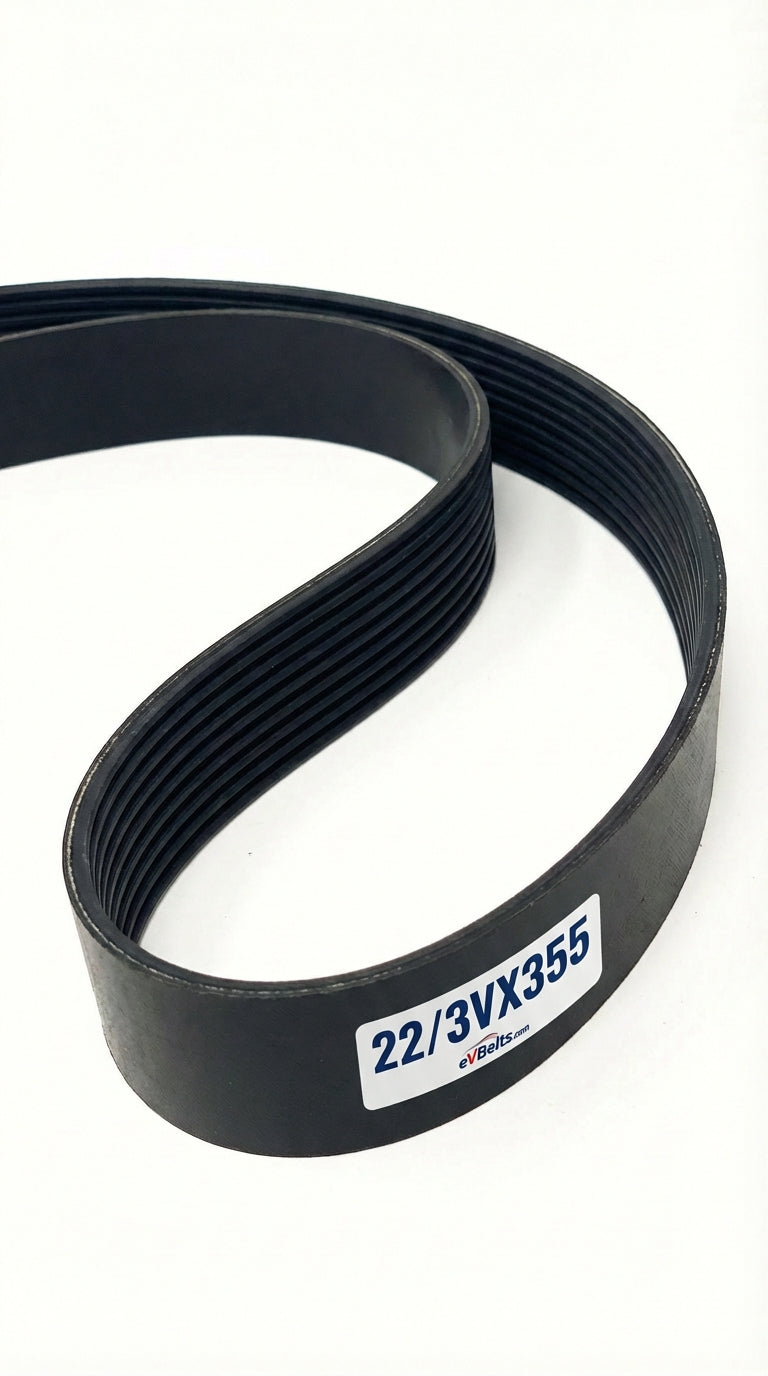

22/3VX355

Top Width: 8.88" (225.55mm)
Outside Length: 35.8" (909.3mm)
Inside Length: 35" (889mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 22-Band Set

The 22/3VX355 is a factory-joined 22-band 3VX banded belt assembly measuring 8.88" wide x 35.8" long, offering improved flexibility around smaller pulleys.

SKU: 1225531

$179.97

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	22/3VX355
Top Width	8.88 in / 225.55 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	35.0 in / 889.0 mm
Outside Length	35.8 in / 909.3 mm
Effective Length	35.5 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	22
Cogged	Yes
