22/3VX335

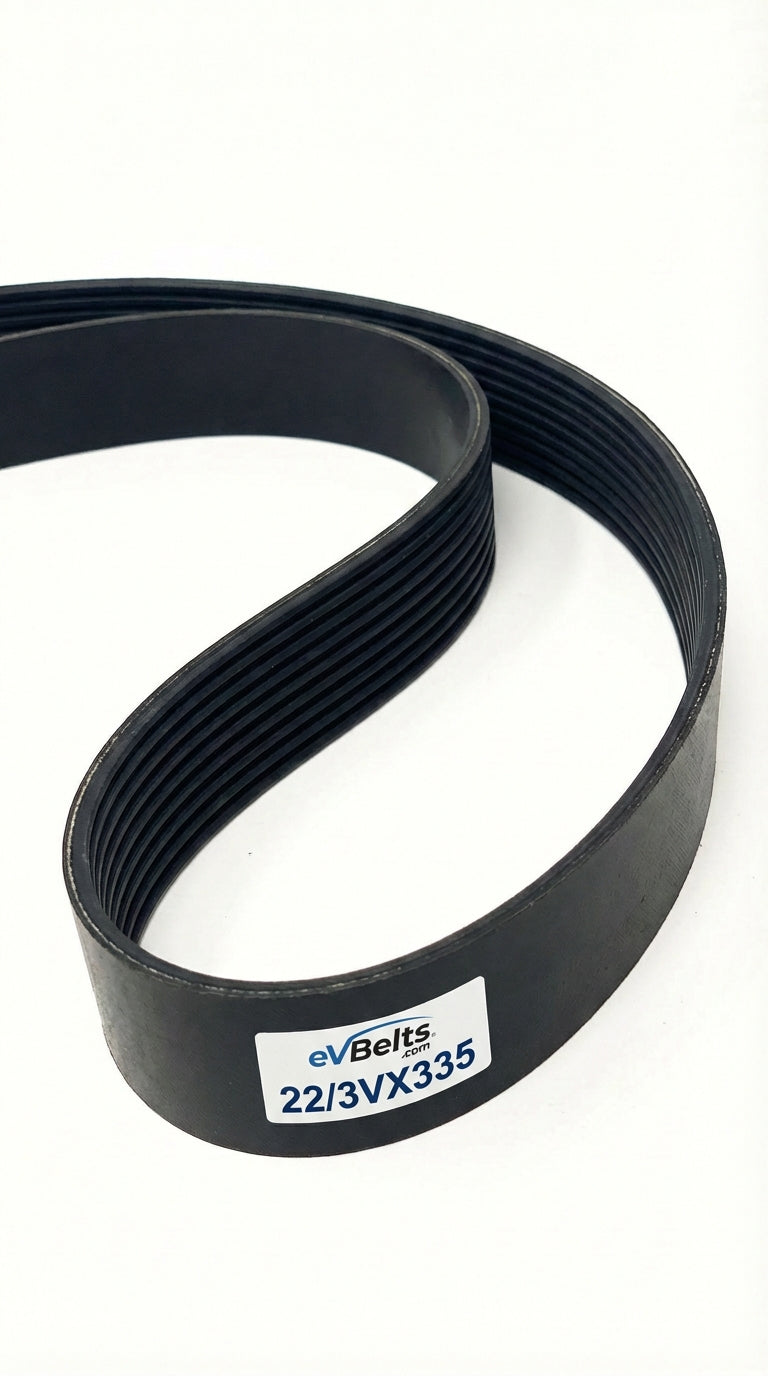

The 22/3VX335 is a factory-joined 22-band 3VX banded belt assembly measuring 8.88" wide x 33.8" long, offering improved flexibility around smaller pulleys.
SKU: 1225530
$172.50
17250
0 In Stock
Estimated delivery between June 23 and June 25.
Technical Specifications
| Part Number | 22/3VX335 |
| Top Width | 8.88 in / 225.55 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 33.0 in / 838.2 mm |
| Outside Length | 33.8 in / 858.5 mm |
| Effective Length | 33.5 in |
| Min Sheave Diameter | 2.2 in / 55.9 mm |
| Ribs | 22 |
| Cogged | Yes |
