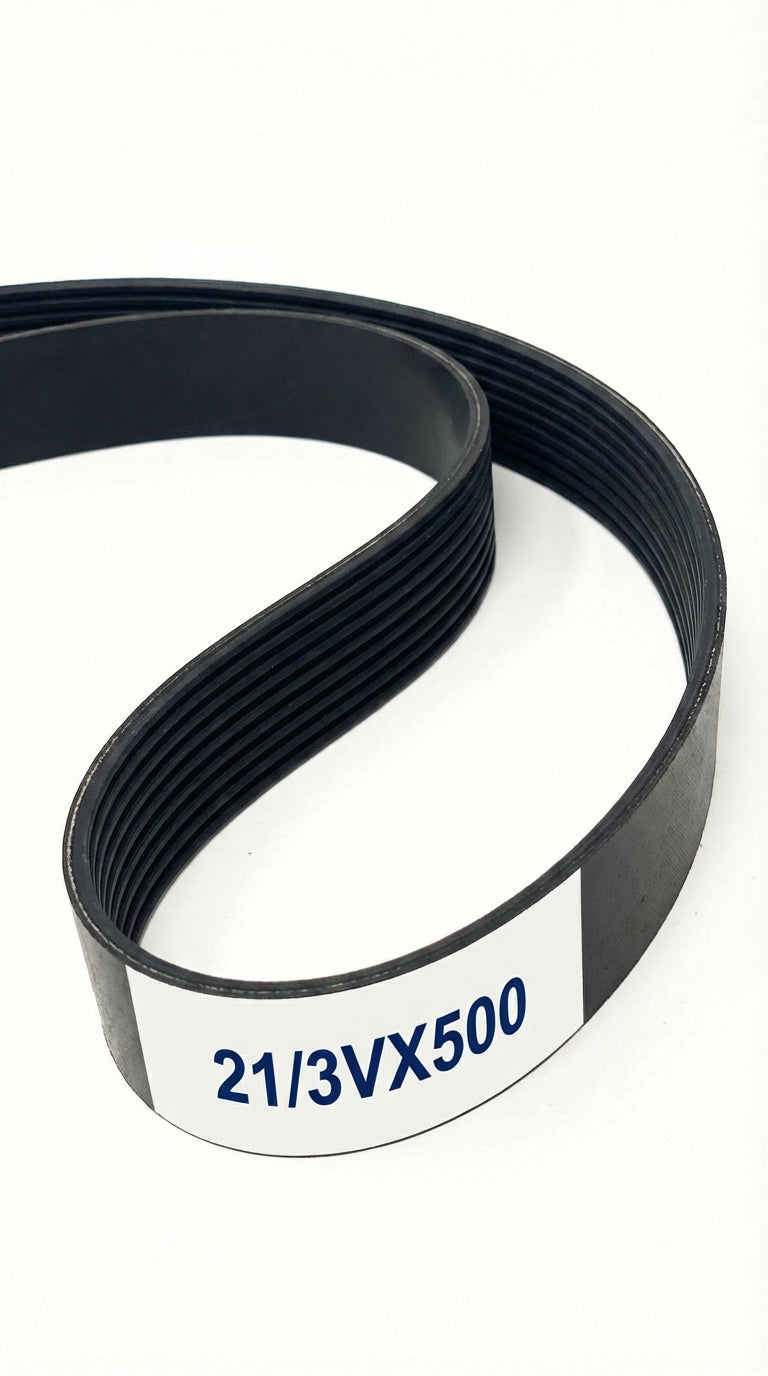

21/3VX500

Top Width: 8.475" (215.26mm)
Outside Length: 50.3" (1277.6mm)
Inside Length: 49.5" (1257.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 21-Band Set

The 21/3VX500 is a factory-joined 21-band 3VX banded belt assembly measuring 8.475" wide x 50.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225501

$226.58

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	21/3VX500
Top Width	8.475 in / 215.26 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	49.5 in / 1257.3 mm
Outside Length	50.3 in / 1277.6 mm
Effective Length	50.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	21
Cogged	Yes
