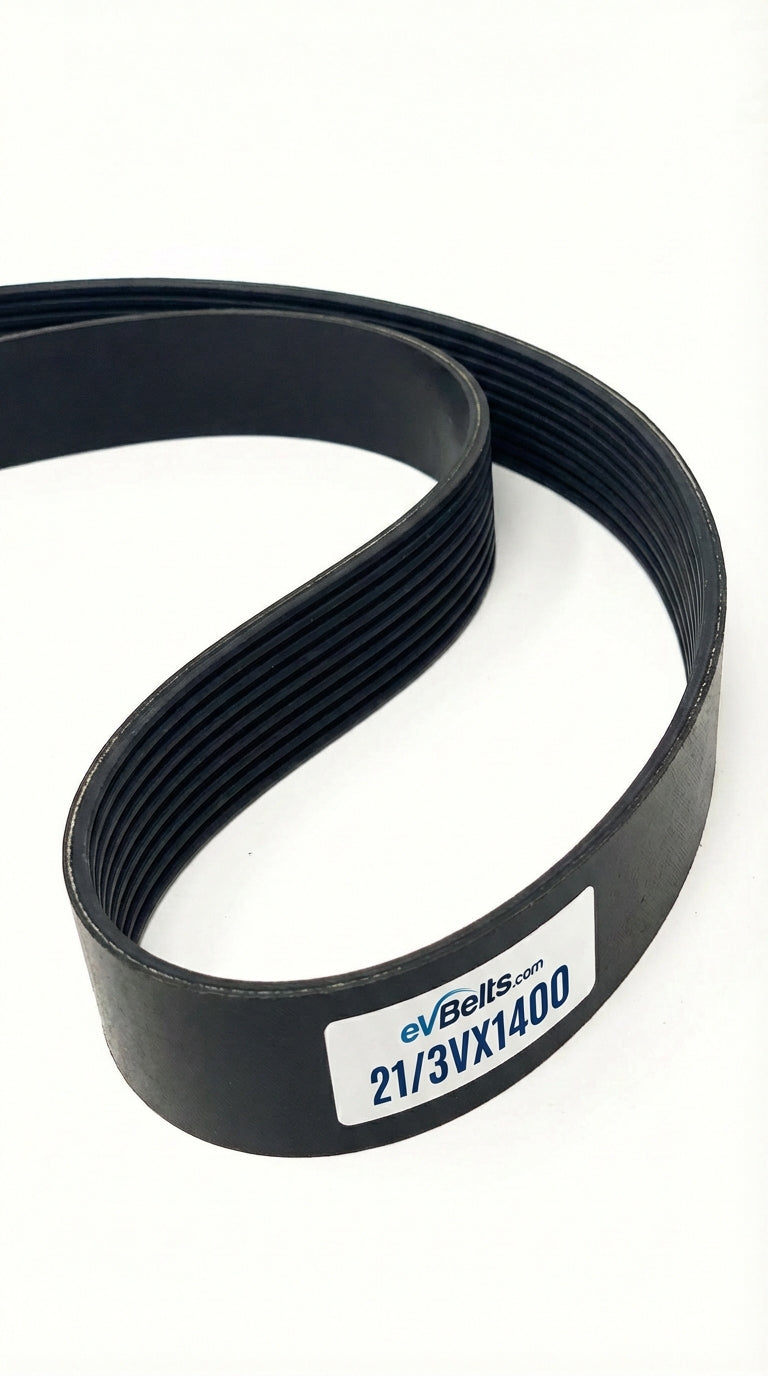

21/3VX1400

Top Width: 8.475" (215.26mm)
Outside Length: 140.3" (3563.6mm)
Inside Length: 139.5" (3543.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 21-Band Set

The 21/3VX1400 is a factory-joined 21-band 3VX banded belt assembly measuring 8.475" wide x 140.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225523

$573.14

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	21/3VX1400
Top Width	8.475 in / 215.26 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	139.5 in / 3543.3 mm
Outside Length	140.3 in / 3563.6 mm
Effective Length	140.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	21
Cogged	Yes
