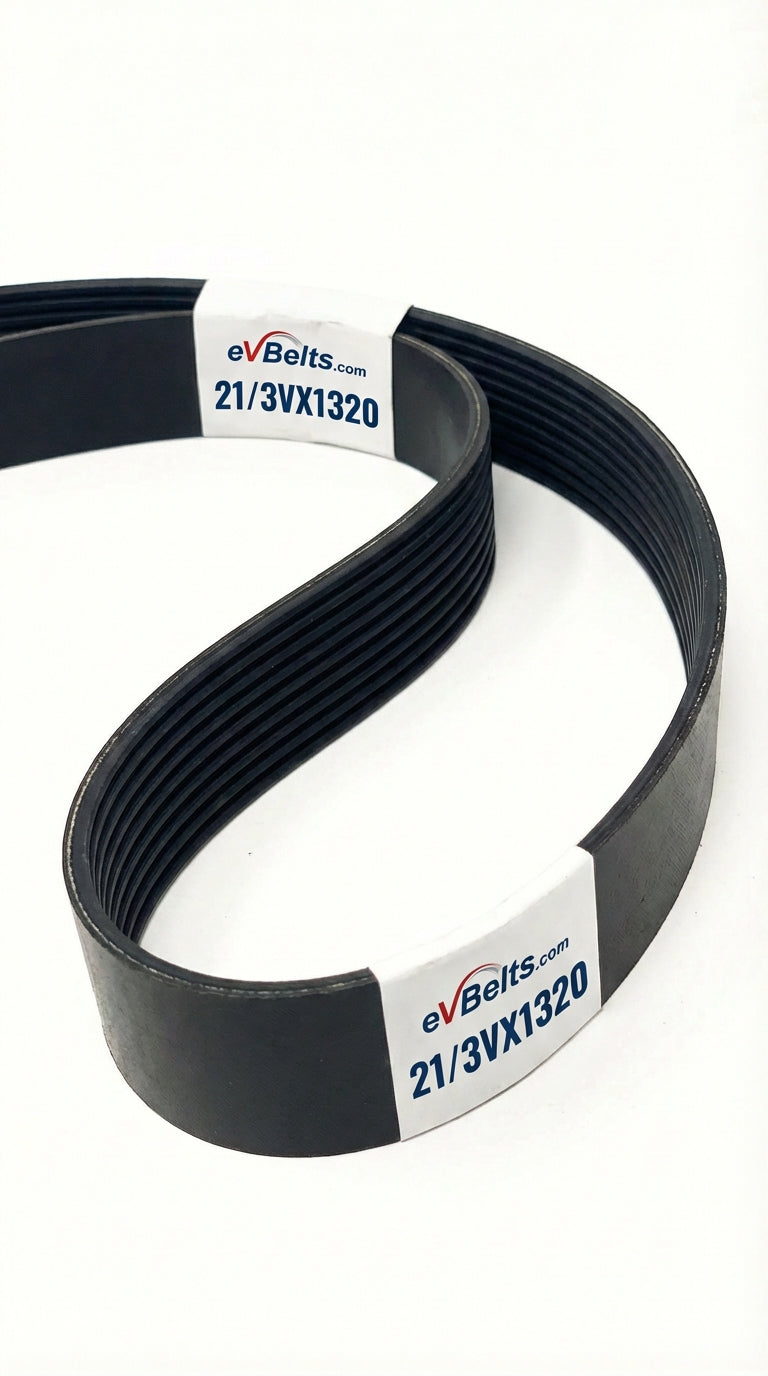

21/3VX1320

Top Width: 8.475" (215.26mm)
Outside Length: 132.3" (3360.4mm)
Inside Length: 131.5" (3340.1mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 21-Band Set

The 21/3VX1320 is a factory-joined 21-band 3VX banded belt assembly measuring 8.475" wide x 132.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225522

$540.93

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	21/3VX1320
Top Width	8.475 in / 215.26 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	131.5 in / 3340.1 mm
Outside Length	132.3 in / 3360.4 mm
Effective Length	132.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	21
Cogged	Yes
