20/3VX950

Top Width: 8.07" (204.98mm)
Outside Length: 95.3" (2420.6mm)
Inside Length: 94.5" (2400.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 20-Band Set

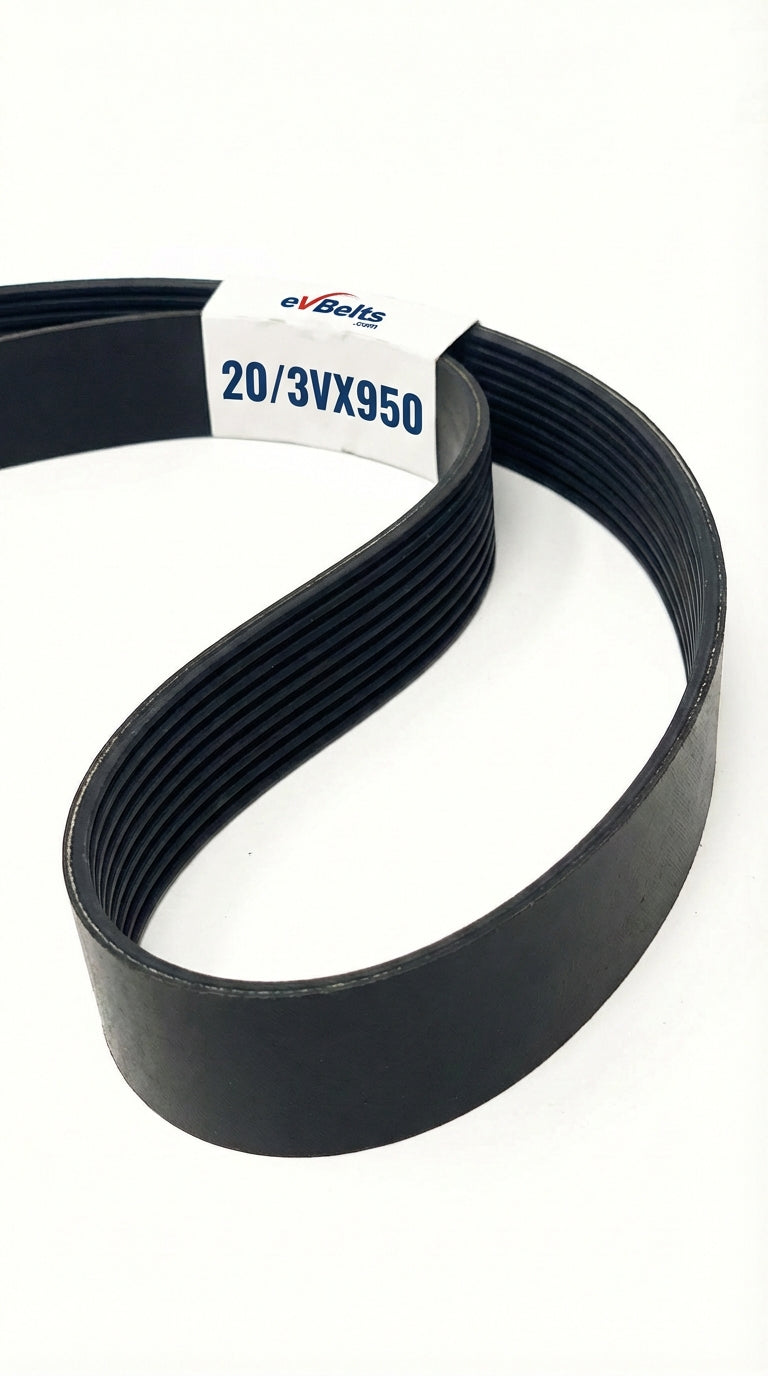

The 20/3VX950 is a factory-joined 20-band 3VX banded belt assembly measuring 8.07" wide x 95.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225460

$351.55

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	20/3VX950
Top Width	8.07 in / 204.98 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	94.5 in / 2400.3 mm
Outside Length	95.3 in / 2420.6 mm
Effective Length	95.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	20
Cogged	Yes
