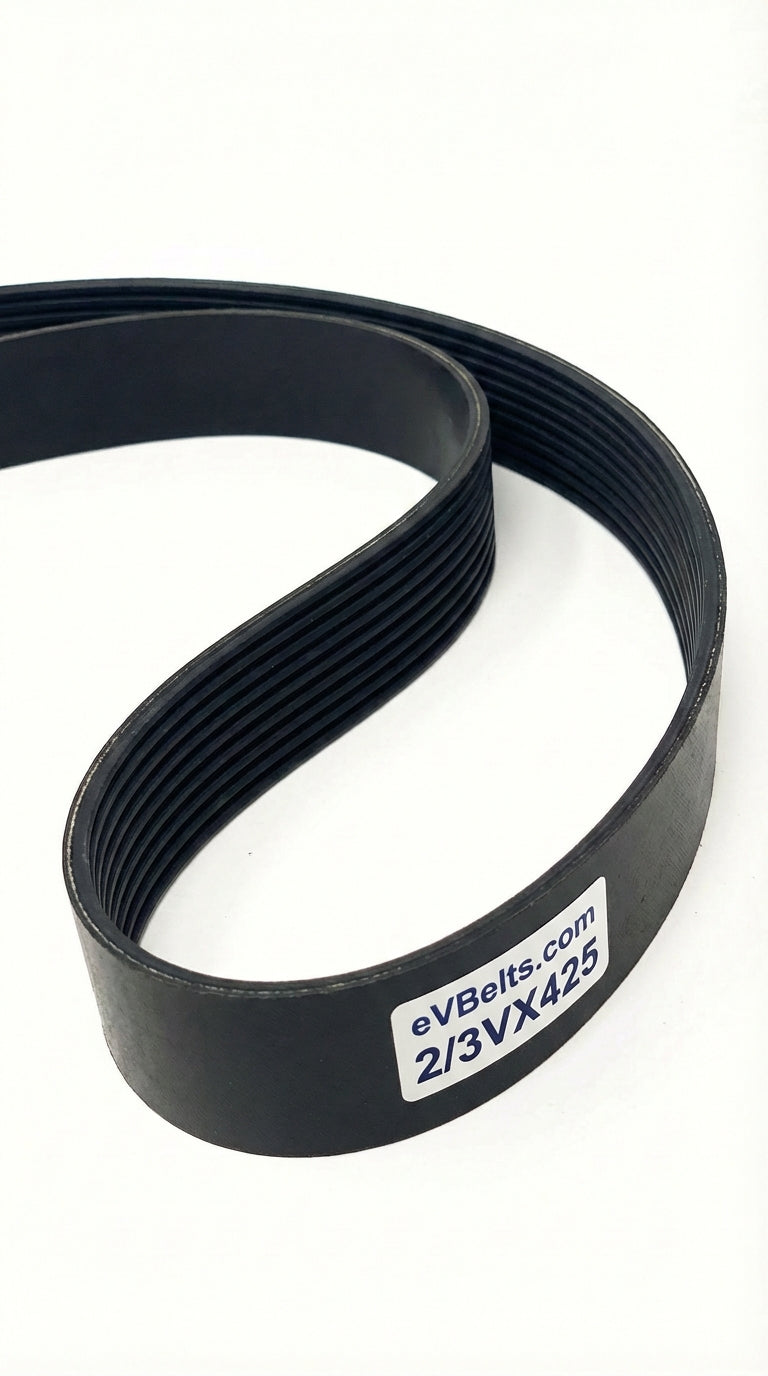

2/3VX425
The 2/3VX425 is a factory-joined 2-band 3VX banded belt assembly measuring 0.78" wide x 42.8" long, offering improved flexibility around smaller pulleys.
SKU: 1225476
$12.62
1262
Only 7 Left!
Estimated delivery between June 23 and June 25.
Technical Specifications
| Part Number | 2/3VX425 |
| Top Width | 0.78 in / 19.81 mm |
| Belt Depth | 0.3125 in / 7.94 mm |
| Inside Length | 42.0 in / 1066.8 mm |
| Outside Length | 42.8 in / 1087.1 mm |
| Effective Length | 42.5 in |
| Min Sheave Diameter | 2.2 in / 55.9 mm |
| Ribs | 2 |
| Cogged | Yes |
2/3VX425
$12.62
1262
$12.62
1262
