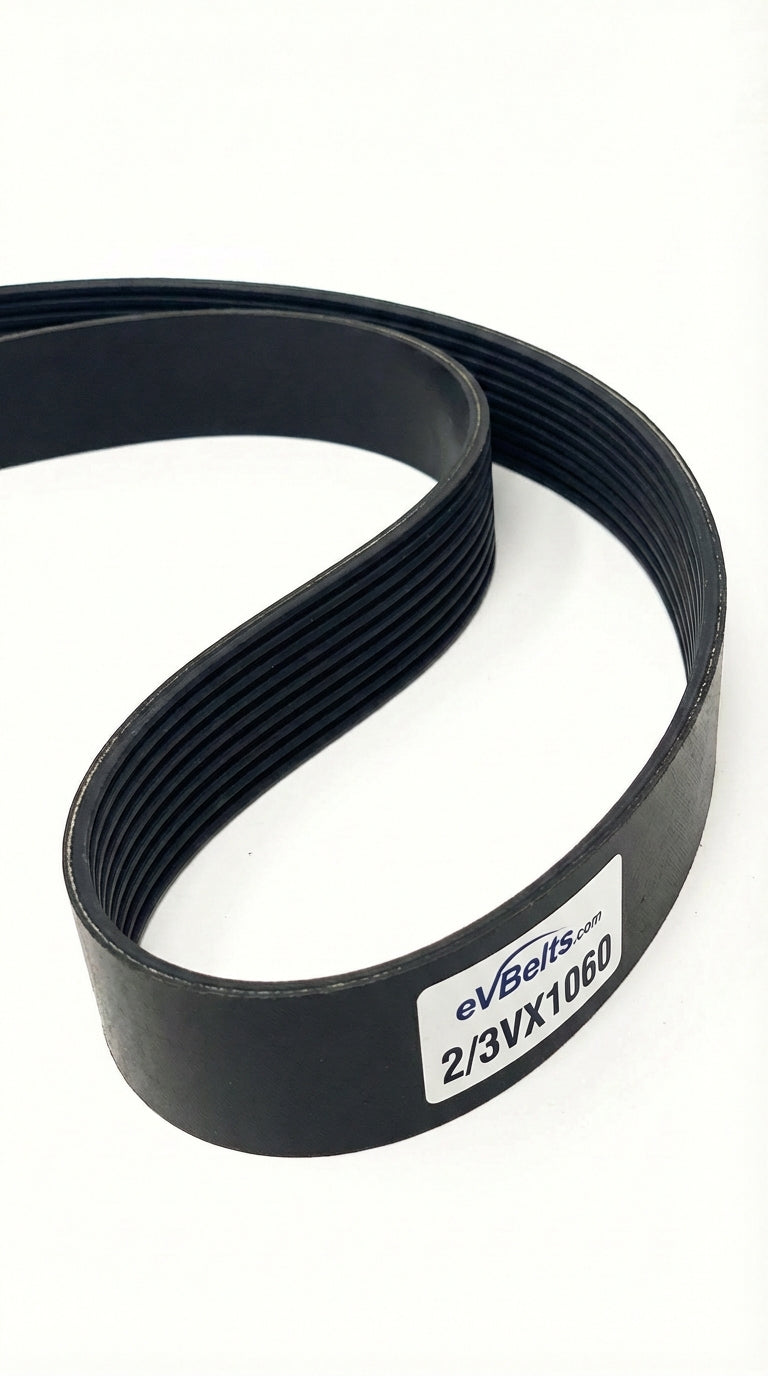

2/3VX1060

Top Width: 0.78" (19.81mm)
Outside Length: 106.3" (2700mm)
Inside Length: 105.5" (2679.7mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 2-Band Set

The 2/3VX1060 is a factory-joined 2-band 3VX banded belt assembly measuring 0.78" wide x 106.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225506

$26.90

18 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	2/3VX1060
Top Width	0.78 in / 19.81 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	105.5 in / 2679.7 mm
Outside Length	106.3 in / 2700.0 mm
Effective Length	106.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	2
Cogged	Yes
