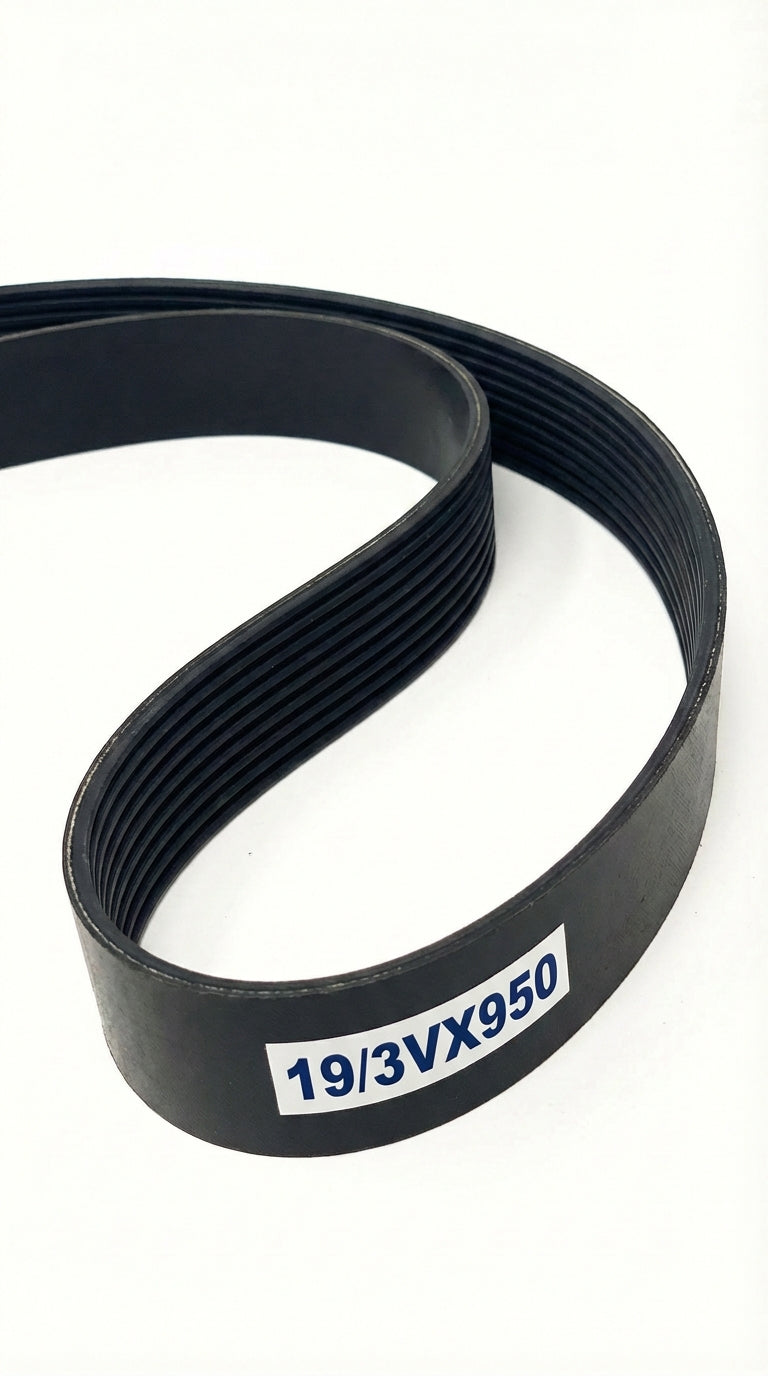

19/3VX950

Top Width: 7.665" (194.69mm)
Outside Length: 95.3" (2420.6mm)
Inside Length: 94.5" (2400.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 19-Band Set

The 19/3VX950 is a factory-joined 19-band 3VX banded belt assembly measuring 7.665" wide x 95.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225430

$333.97

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	19/3VX950
Top Width	7.665 in / 194.69 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	94.5 in / 2400.3 mm
Outside Length	95.3 in / 2420.6 mm
Effective Length	95.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	19
Cogged	Yes
