19/3VX475

Top Width: 7.665" (194.69mm)
Outside Length: 47.8" (1214.1mm)
Inside Length: 47" (1193.8mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 19-Band Set

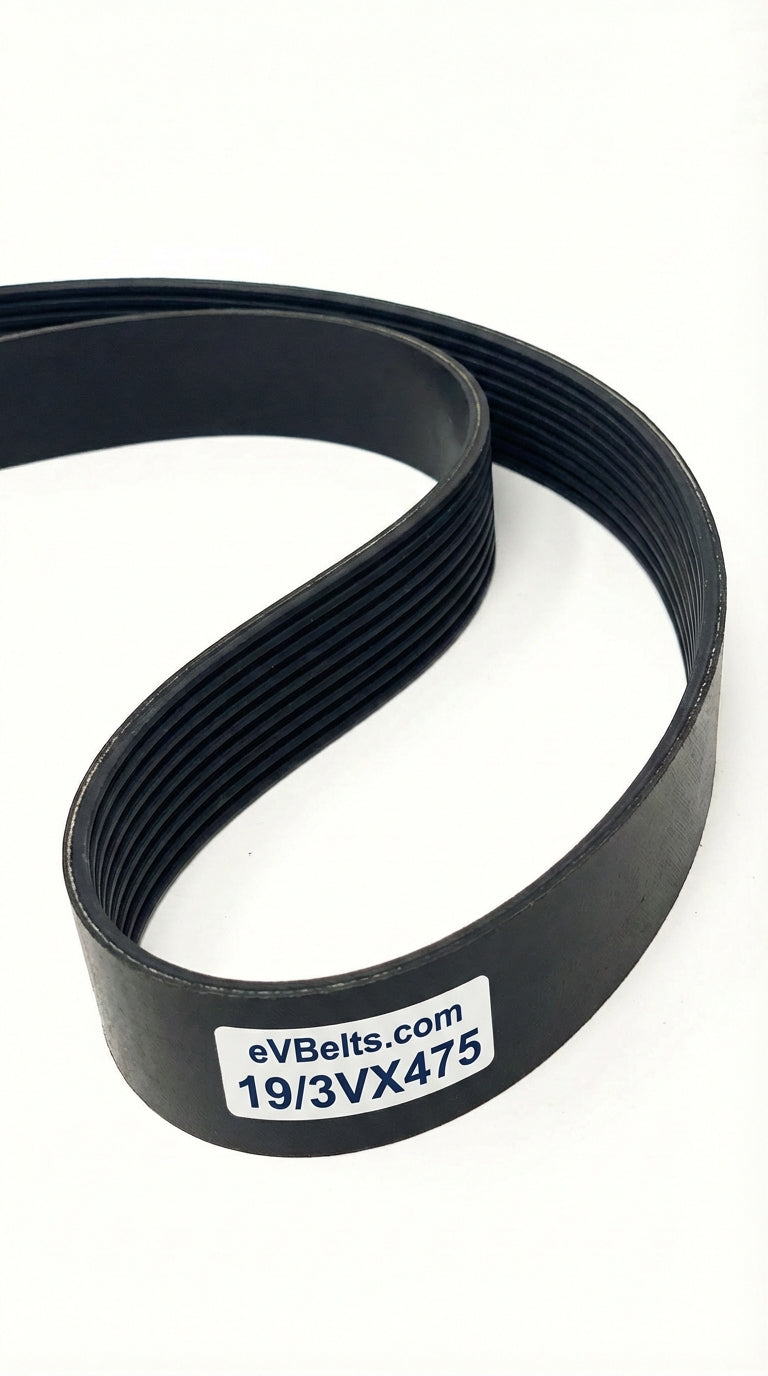

The 19/3VX475 is a factory-joined 19-band 3VX banded belt assembly measuring 7.665" wide x 47.8" long, offering improved flexibility around smaller pulleys.

SKU: 1225416

$188.52

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	19/3VX475
Top Width	7.665 in / 194.69 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	47.0 in / 1193.8 mm
Outside Length	47.8 in / 1214.1 mm
Effective Length	47.5 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	19
Cogged	Yes
