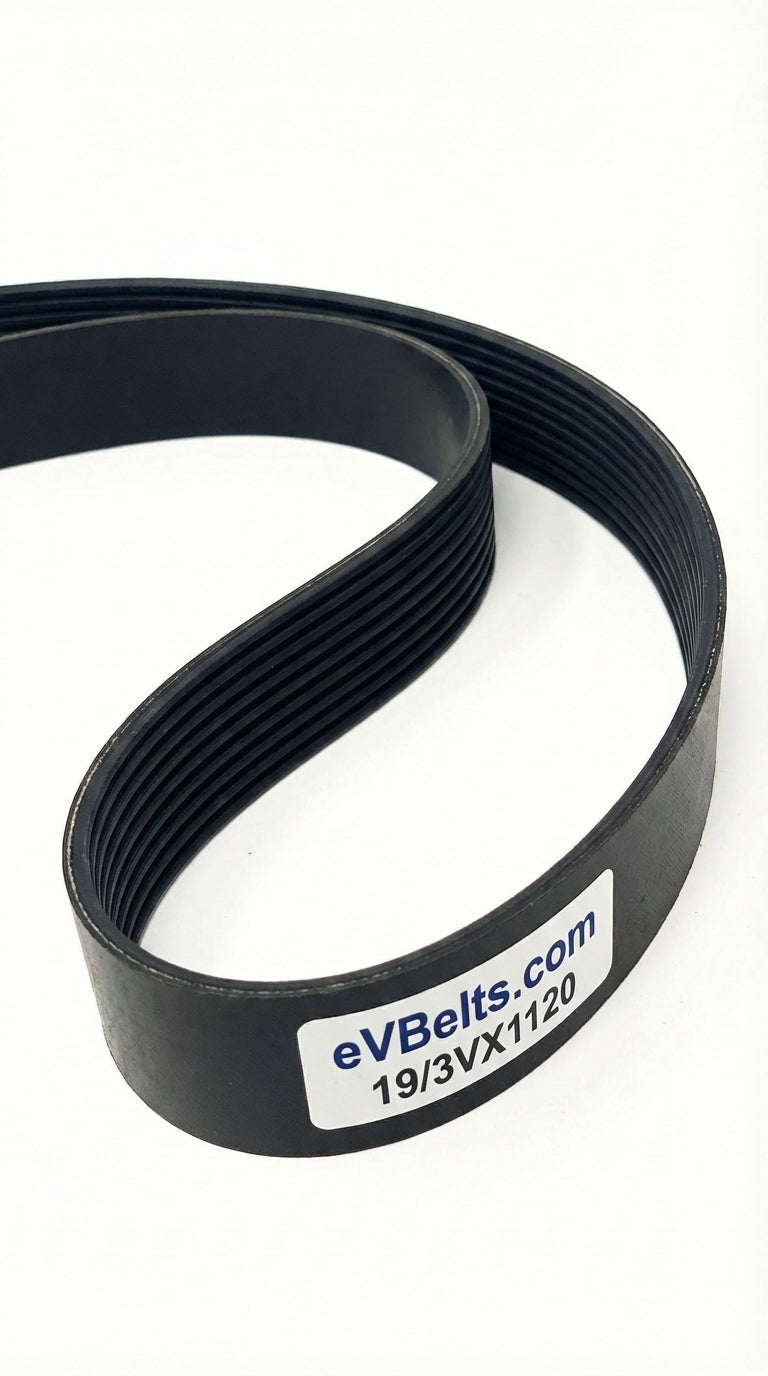

19/3VX1120

Top Width: 7.665" (194.69mm)
Outside Length: 112.3" (2852.4mm)
Inside Length: 111.5" (2832.1mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 19-Band Set

The 19/3VX1120 is a factory-joined 19-band 3VX banded belt assembly measuring 7.665" wide x 112.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225433

$406.74

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	19/3VX1120
Top Width	7.665 in / 194.69 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	111.5 in / 2832.1 mm
Outside Length	112.3 in / 2852.4 mm
Effective Length	112.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	19
Cogged	Yes
