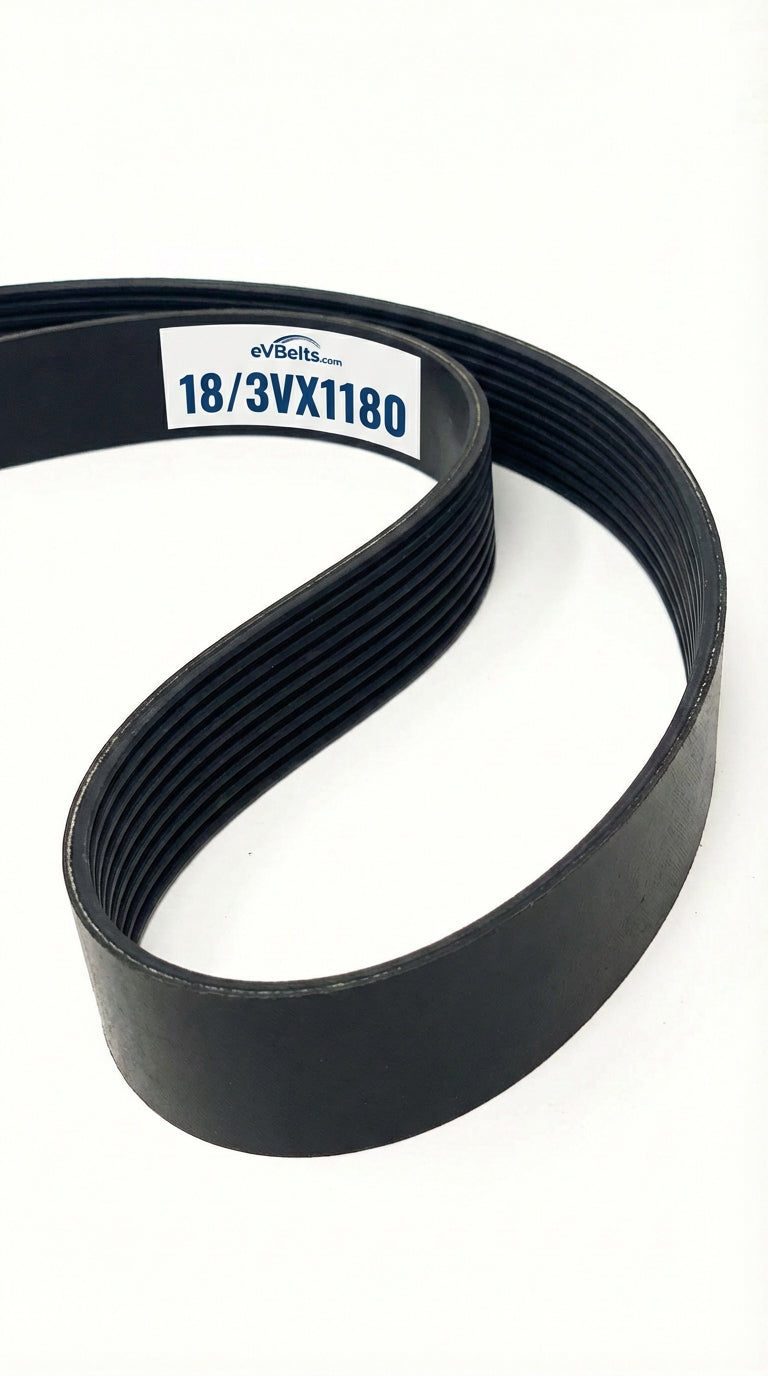

18/3VX1180

Top Width: 7.26" (184.4mm)
Outside Length: 118.3" (3004.8mm)
Inside Length: 117.5" (2984.5mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 18-Band Set

The 18/3VX1180 is a factory-joined 18-band 3VX banded belt assembly measuring 7.26" wide x 118.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225404

$410.41

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	18/3VX1180
Top Width	7.26 in / 184.4 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	117.5 in / 2984.5 mm
Outside Length	118.3 in / 3004.8 mm
Effective Length	118.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	18
Cogged	Yes
