16/3VX315

Top Width: 6.45" (163.83mm)
Outside Length: 31.8" (807.7mm)
Inside Length: 31" (787.4mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 16-Band Set

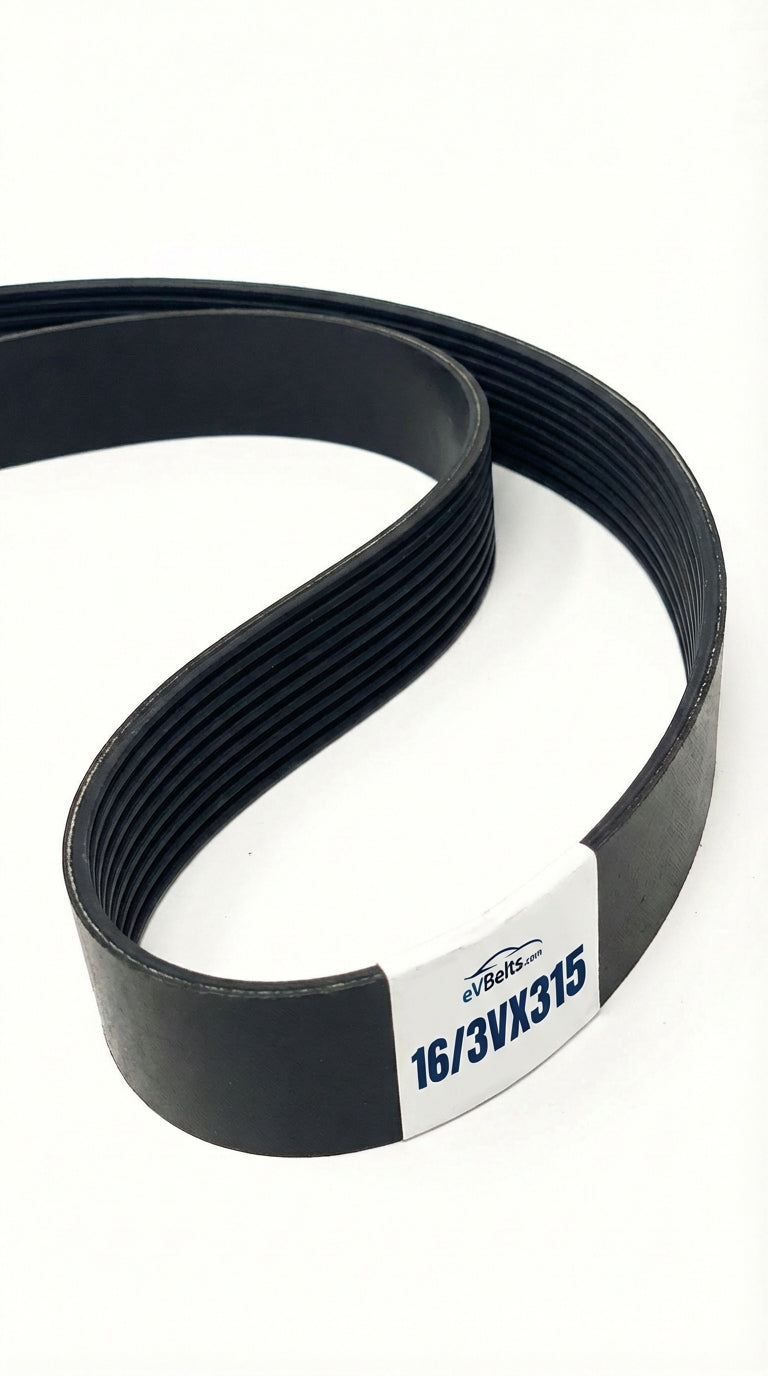

The 16/3VX315 is a factory-joined 16-band 3VX banded belt assembly measuring 6.45" wide x 31.8" long, offering improved flexibility around smaller pulleys.

SKU: 1225322

$122.56

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	16/3VX315
Top Width	6.45 in / 163.83 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	31.0 in / 787.4 mm
Outside Length	31.8 in / 807.7 mm
Effective Length	31.5 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	16
Cogged	Yes
