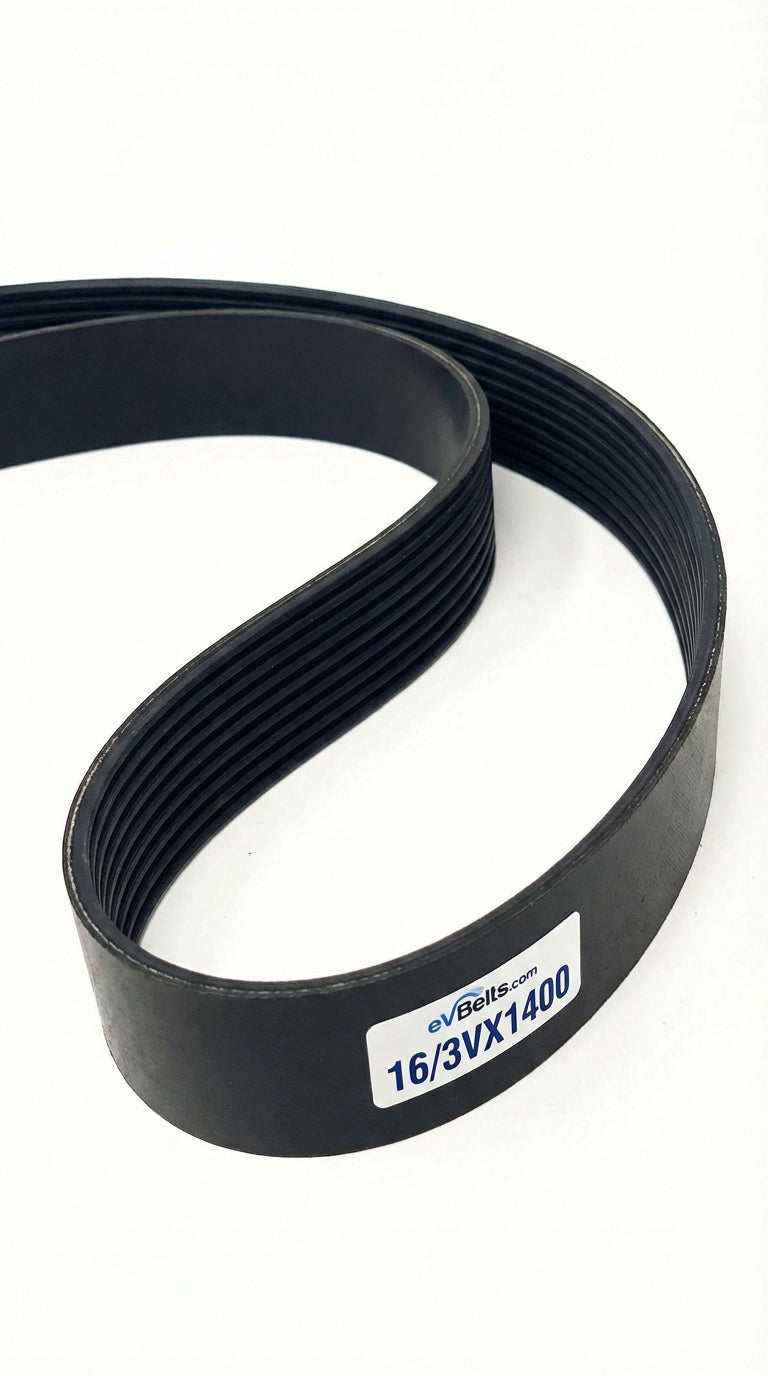

16/3VX1400

Top Width: 6.45" (163.83mm)
Outside Length: 140.3" (3563.6mm)
Inside Length: 139.5" (3543.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 16-Band Set

The 16/3VX1400 is a factory-joined 16-band 3VX banded belt assembly measuring 6.45" wide x 140.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225351

$436.67

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	16/3VX1400
Top Width	6.45 in / 163.83 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	139.5 in / 3543.3 mm
Outside Length	140.3 in / 3563.6 mm
Effective Length	140.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	16
Cogged	Yes
