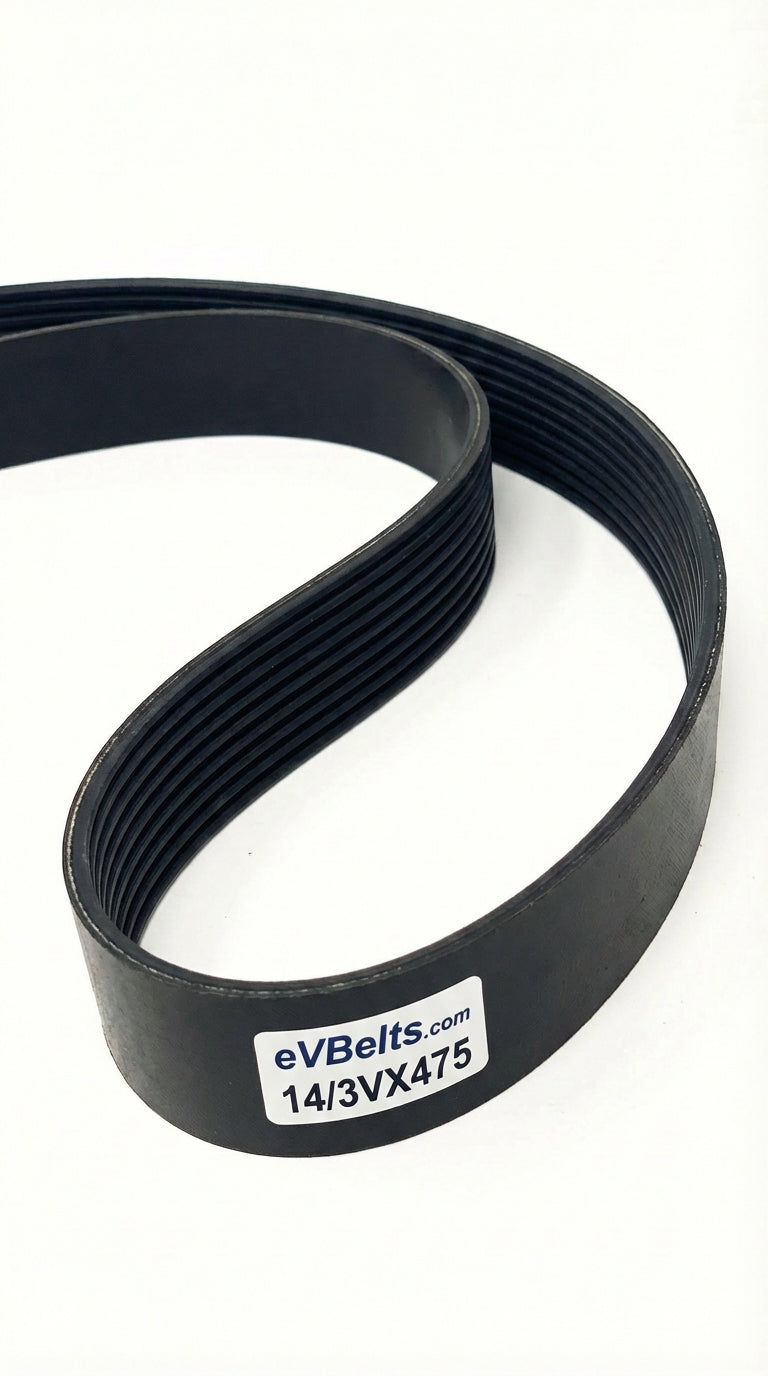

14/3VX475

Top Width: 5.64" (143.26mm)
Outside Length: 47.8" (1214.1mm)
Inside Length: 47" (1193.8mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 14-Band Set

The 14/3VX475 is a factory-joined 14-band 3VX banded belt assembly measuring 5.64" wide x 47.8" long, offering improved flexibility around smaller pulleys.

SKU: 1225273

$138.90

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	14/3VX475
Top Width	5.64 in / 143.26 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	47.0 in / 1193.8 mm
Outside Length	47.8 in / 1214.1 mm
Effective Length	47.5 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	14
Cogged	Yes
