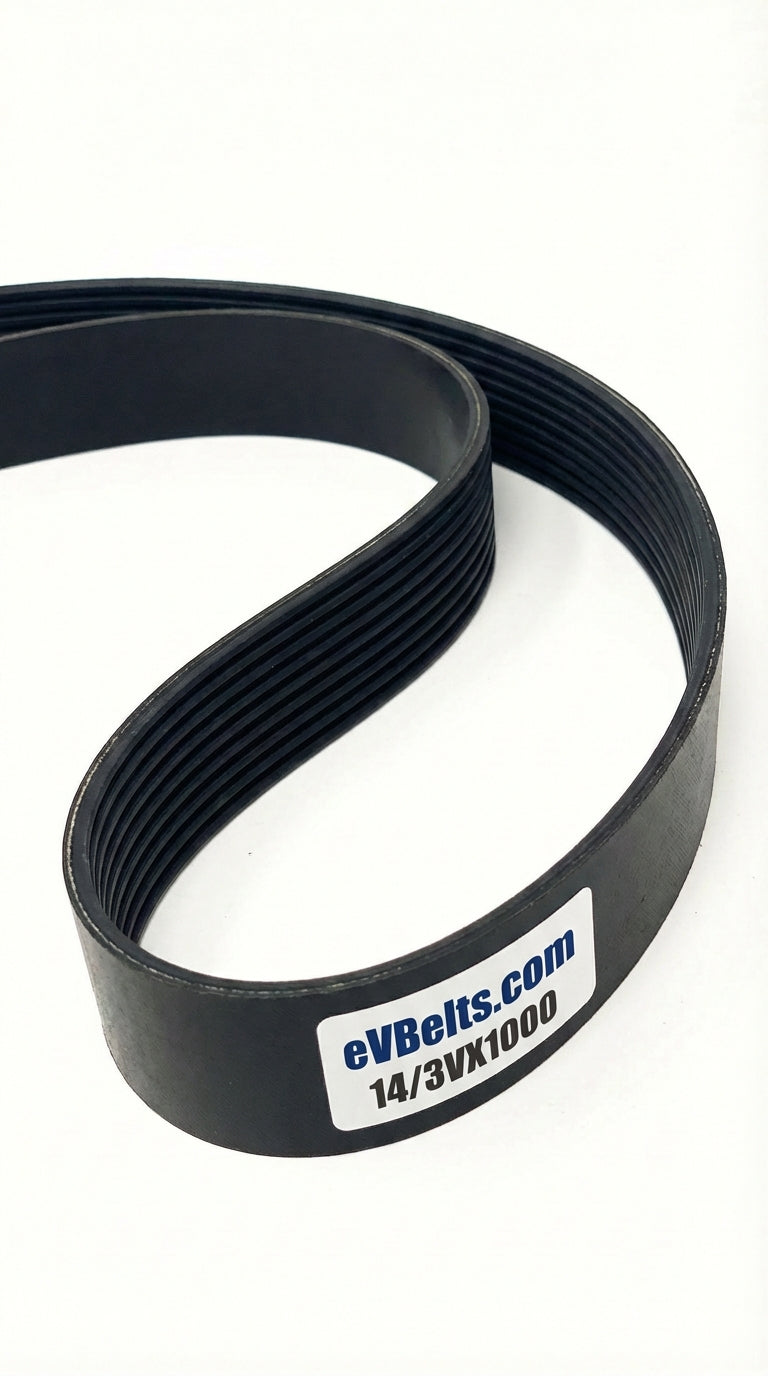

14/3VX1000

Top Width: 5.64" (143.26mm)
Outside Length: 100.3" (2547.6mm)
Inside Length: 99.5" (2527.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 14-Band Set

The 14/3VX1000 is a factory-joined 14-band 3VX banded belt assembly measuring 5.64" wide x 100.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225286

$260.77

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	14/3VX1000
Top Width	5.64 in / 143.26 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	99.5 in / 2527.3 mm
Outside Length	100.3 in / 2547.6 mm
Effective Length	100.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	14
Cogged	Yes
