13/3VX950

Top Width: 5.235" (132.97mm)
Outside Length: 95.3" (2420.6mm)
Inside Length: 94.5" (2400.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 13-Band Set

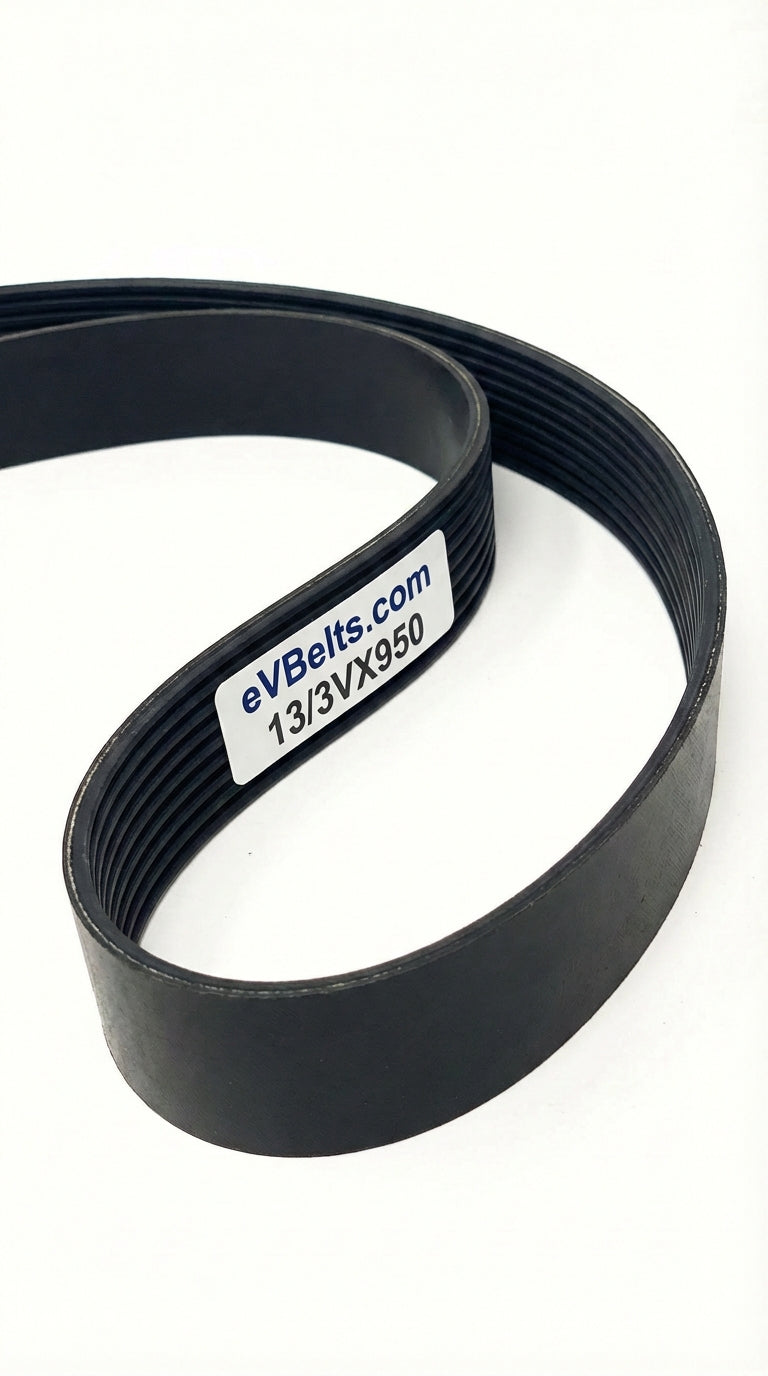

The 13/3VX950 is a factory-joined 13-band 3VX banded belt assembly measuring 5.235" wide x 95.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225256

$228.51

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	13/3VX950
Top Width	5.235 in / 132.97 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	94.5 in / 2400.3 mm
Outside Length	95.3 in / 2420.6 mm
Effective Length	95.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	13
Cogged	Yes
