13/3VX710

Top Width: 5.235" (132.97mm)
Outside Length: 71.3" (1811mm)
Inside Length: 70.5" (1790.7mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 13-Band Set

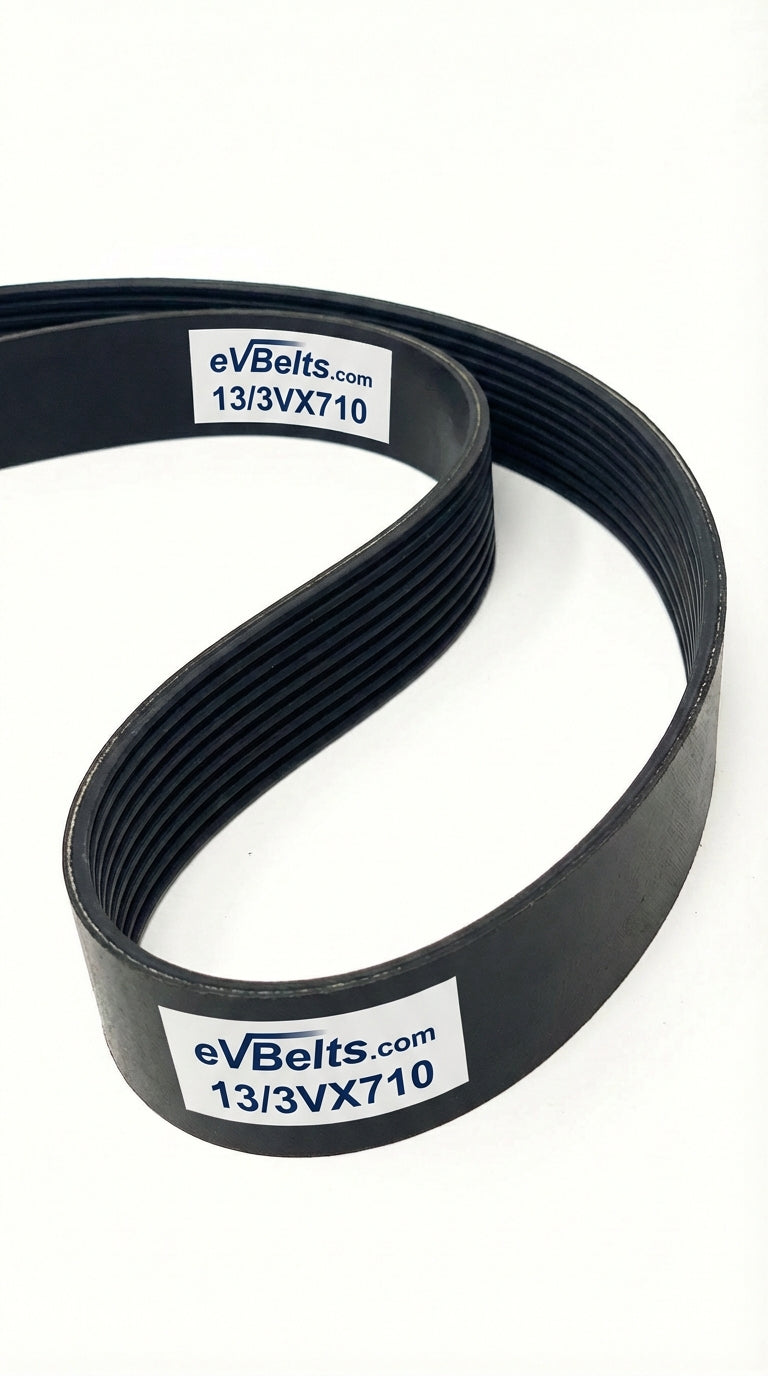

The 13/3VX710 is a factory-joined 13-band 3VX banded belt assembly measuring 5.235" wide x 71.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225250

$167.44

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	13/3VX710
Top Width	5.235 in / 132.97 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	70.5 in / 1790.7 mm
Outside Length	71.3 in / 1811.0 mm
Effective Length	71.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	13
Cogged	Yes
