13/3VX670

Top Width: 5.235" (132.97mm)
Outside Length: 67.3" (1709.4mm)
Inside Length: 66.5" (1689.1mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 13-Band Set

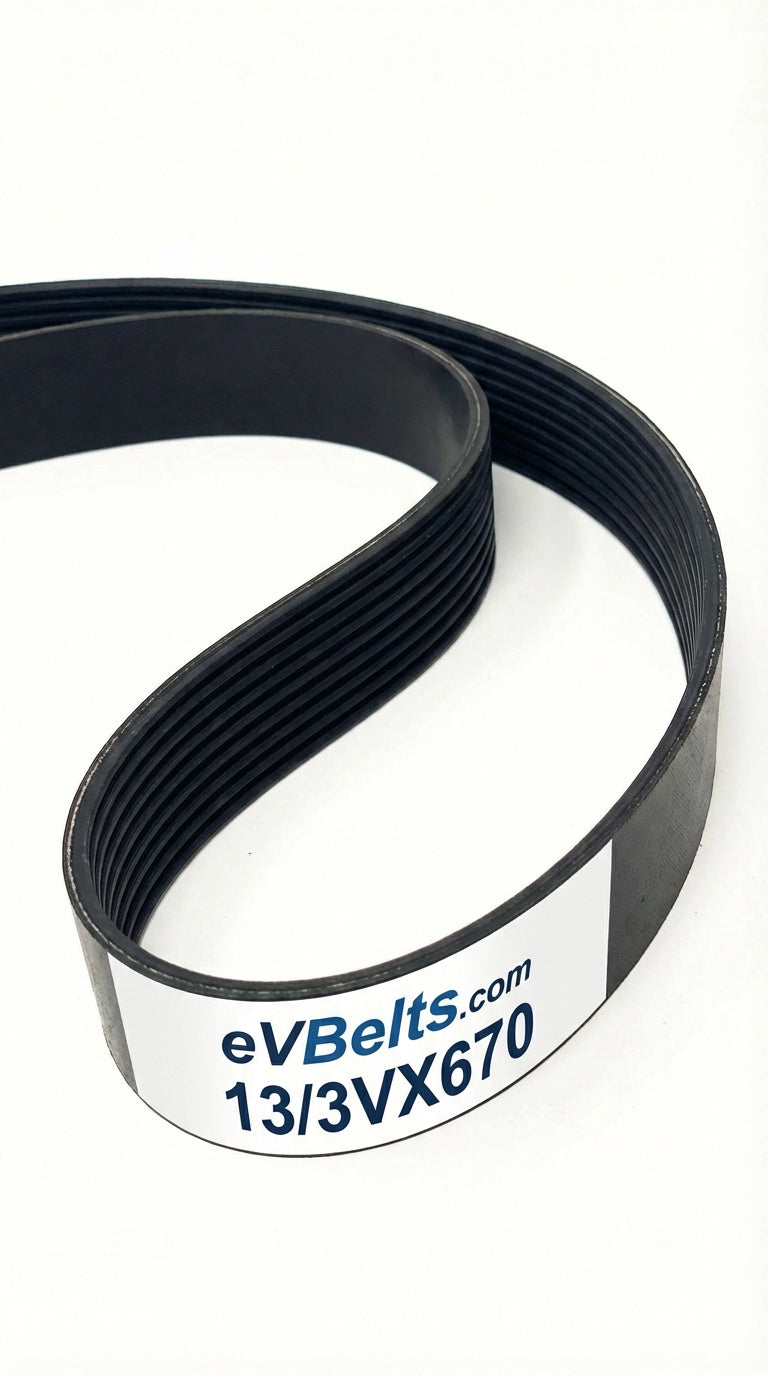

The 13/3VX670 is a factory-joined 13-band 3VX banded belt assembly measuring 5.235" wide x 67.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225249

$158.38

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	13/3VX670
Top Width	5.235 in / 132.97 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	66.5 in / 1689.1 mm
Outside Length	67.3 in / 1709.4 mm
Effective Length	67.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	13
Cogged	Yes
