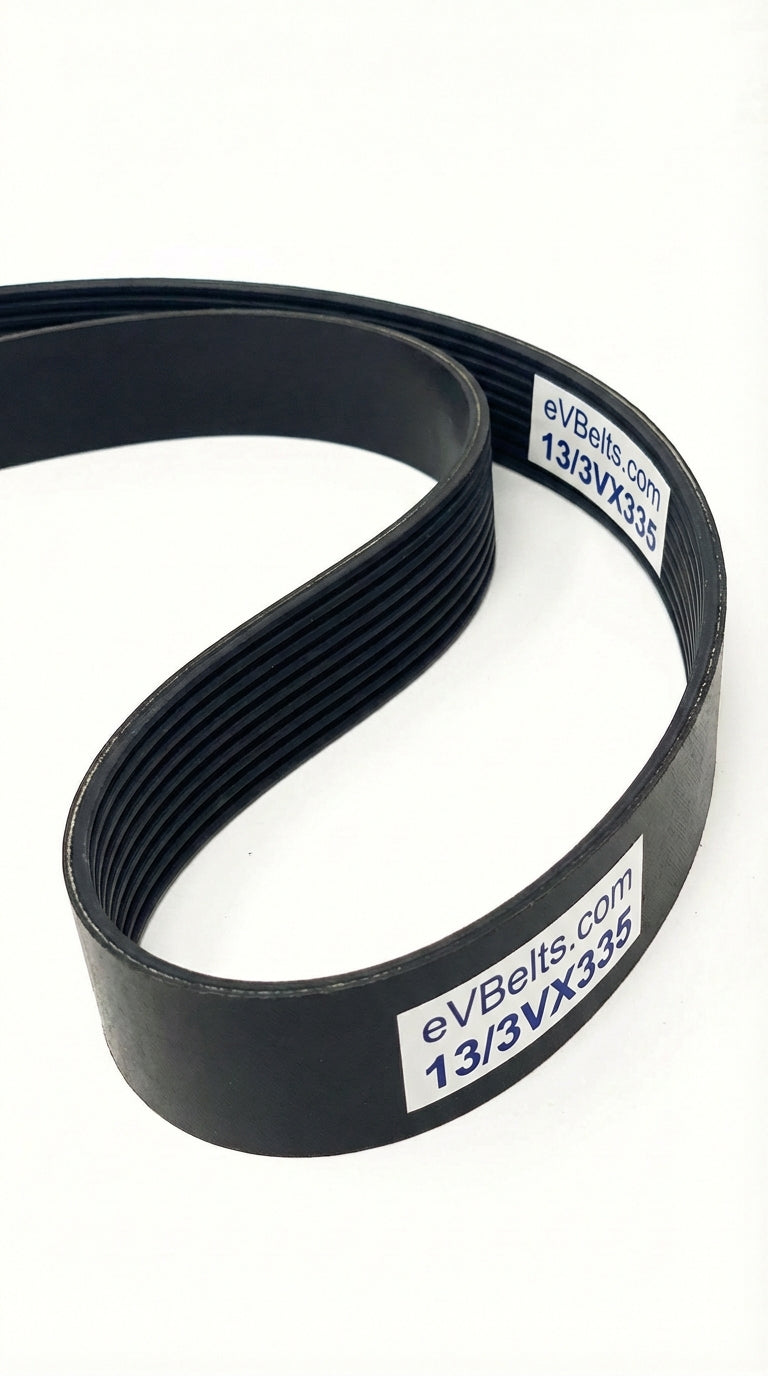

13/3VX335

Top Width: 5.235" (132.97mm)
Outside Length: 33.8" (858.5mm)
Inside Length: 33" (838.2mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 13-Band Set

The 13/3VX335 is a factory-joined 13-band 3VX banded belt assembly measuring 5.235" wide x 33.8" long, offering improved flexibility around smaller pulleys.

SKU: 1225237

$101.94

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	13/3VX335
Top Width	5.235 in / 132.97 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	33.0 in / 838.2 mm
Outside Length	33.8 in / 858.5 mm
Effective Length	33.5 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	13
Cogged	Yes
