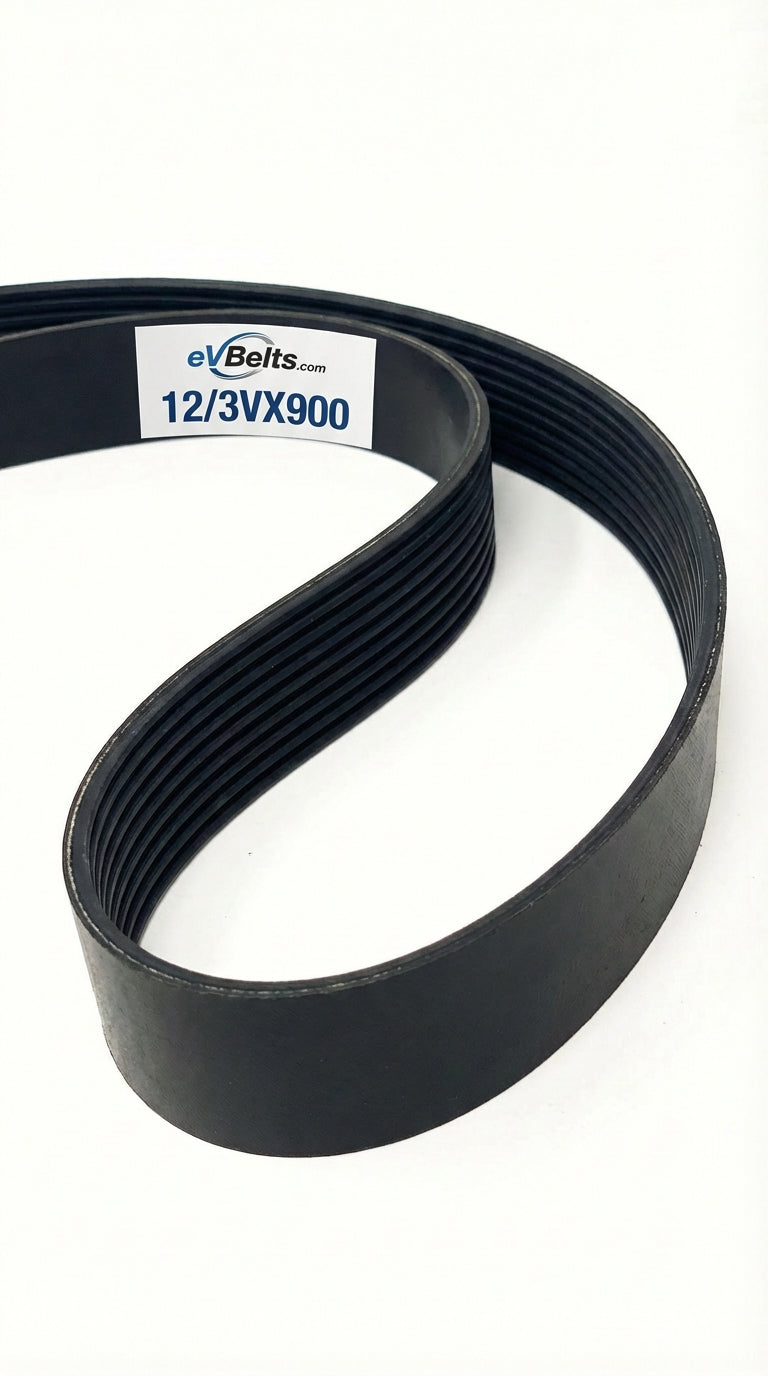

12/3VX900

Top Width: 4.83" (122.68mm)
Outside Length: 90.3" (2293.6mm)
Inside Length: 89.5" (2273.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 12-Band Set

The 12/3VX900 is a factory-joined 12-band 3VX banded belt assembly measuring 4.83" wide x 90.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225226

$202.77

Only 10 Left!

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/3VX900
Top Width	4.83 in / 122.68 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	89.5 in / 2273.3 mm
Outside Length	90.3 in / 2293.6 mm
Effective Length	90.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	12
Cogged	Yes
