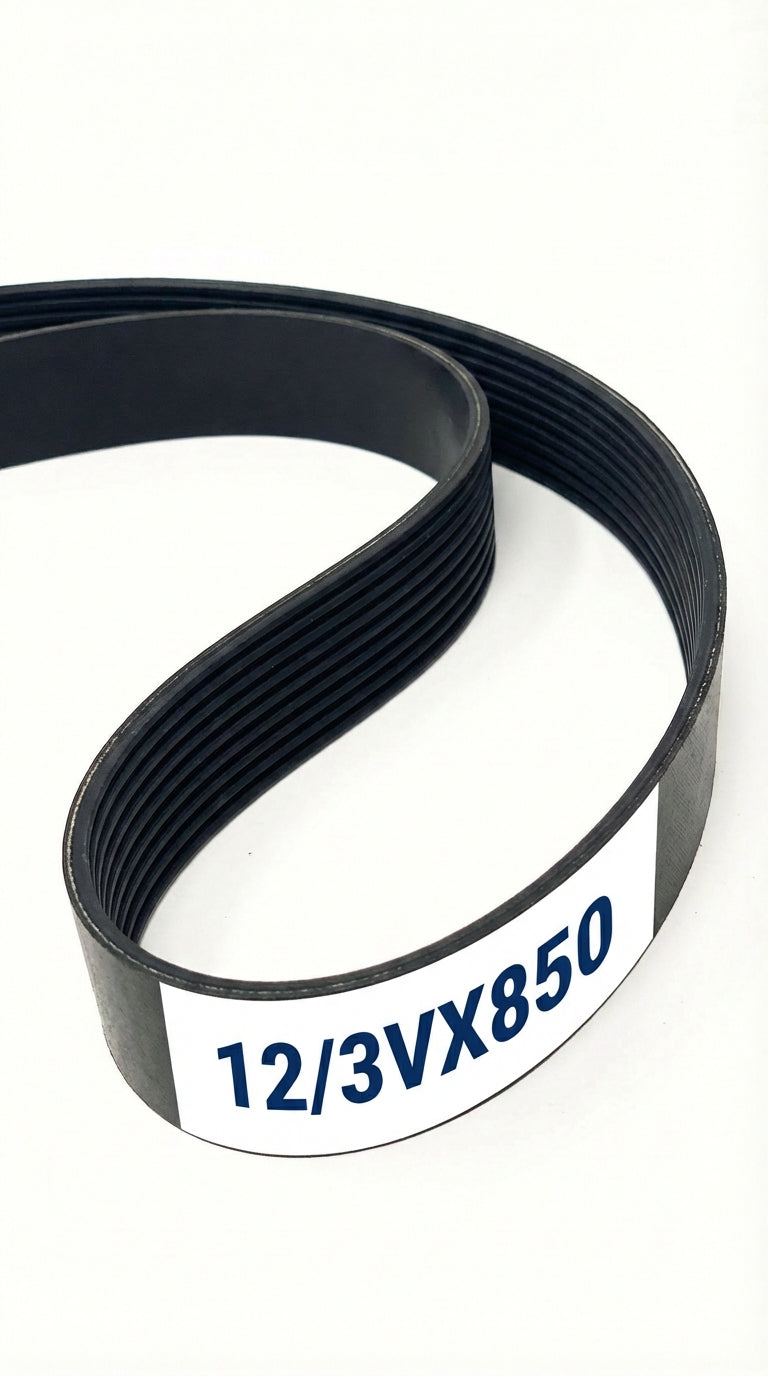

12/3VX850

Top Width: 4.83" (122.68mm)
Outside Length: 85.3" (2166.6mm)
Inside Length: 84.5" (2146.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 12-Band Set

The 12/3VX850 is a factory-joined 12-band 3VX banded belt assembly measuring 4.83" wide x 85.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225224

$188.06

26 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/3VX850
Top Width	4.83 in / 122.68 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	84.5 in / 2146.3 mm
Outside Length	85.3 in / 2166.6 mm
Effective Length	85.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	12
Cogged	Yes
