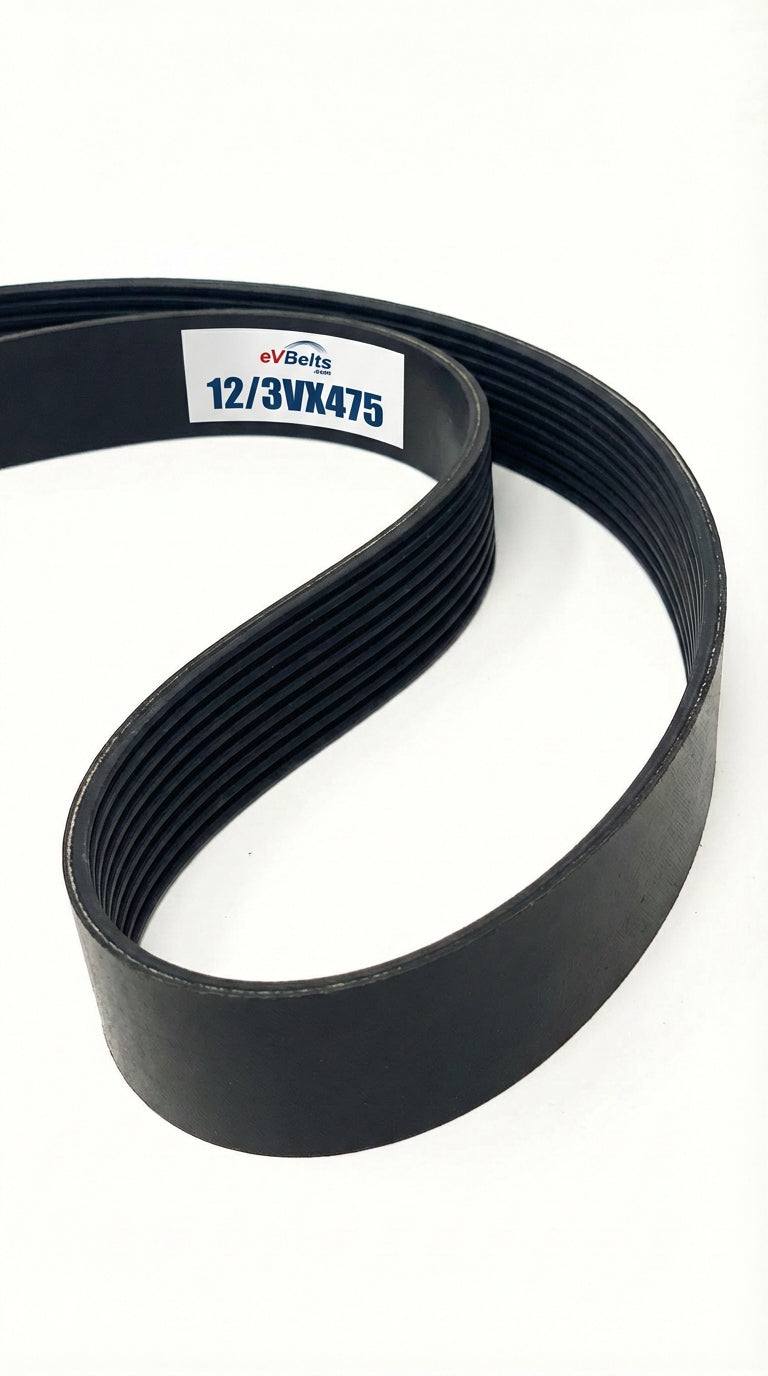

12/3VX475

Top Width: 4.83" (122.68mm)
Outside Length: 47.8" (1214.1mm)
Inside Length: 47" (1193.8mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 12-Band Set

The 12/3VX475 is a factory-joined 12-band 3VX banded belt assembly measuring 4.83" wide x 47.8" long, offering improved flexibility around smaller pulleys.

SKU: 1225215

$120.44

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/3VX475
Top Width	4.83 in / 122.68 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	47.0 in / 1193.8 mm
Outside Length	47.8 in / 1214.1 mm
Effective Length	47.5 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	12
Cogged	Yes
