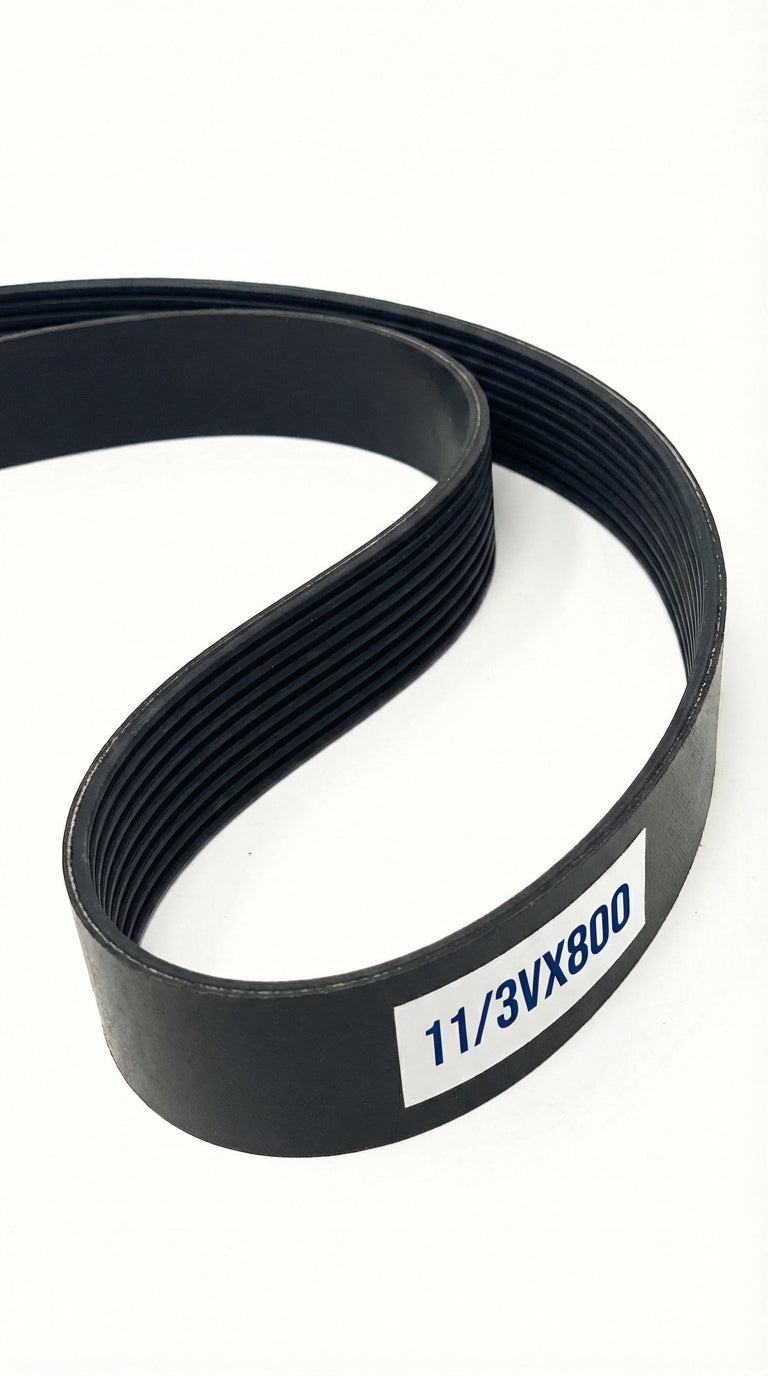

11/3VX800

Top Width: 4.425" (112.39mm)
Outside Length: 80.3" (2039.6mm)
Inside Length: 79.5" (2019.3mm)
Min Pulley Diameter: 2.2"
Profile: Cogged/Notched
Configuration: 11-Band Set

The 11/3VX800 is a factory-joined 11-band 3VX banded belt assembly measuring 4.425" wide x 80.3" long, offering improved flexibility around smaller pulleys.

SKU: 1225194

$160.89

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	11/3VX800
Top Width	4.425 in / 112.39 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	79.5 in / 2019.3 mm
Outside Length	80.3 in / 2039.6 mm
Effective Length	80.0 in
Min Sheave Diameter	2.2 in / 55.9 mm
Ribs	11
Cogged	Yes
